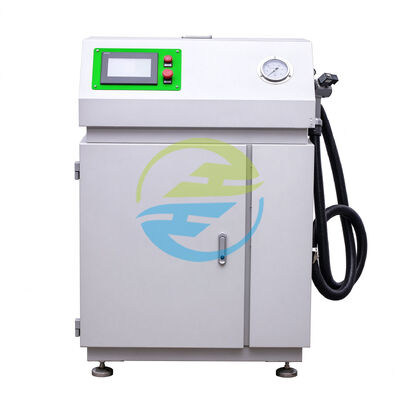

Automatic Refrigerant Recovery Charging Station 3-in-1 Vacuum Pull Down Function R410A R32

Brand Name:	HongCe
Model Number:	HC-RCS3000
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	5 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, Guangdong, China

Certification:

Third-party certification certificate(cost additional)

Refrigerant Type:

R410A / R32 / R134a / R290 / R404A

Ultimate Vacuum:

20 Microns

Power Supply:

220 V 50/60 Hz

Scale Resolution:

0.5 G

Recovery Rate:

1.2 Kg/min Liquid, 0.35 Kg/min Vapour

Vacuum Pump:

7.2 CFM Two Stage

Charging Range:

10 - 3000 G

Recovery Cylinder:

13.6 Kg Internal Tank

Packaging Details:

Plywood export case with shock absorbing foam, hose set and English manual included

Highlight:

3-in-1 Recovery Vacuum Charging

Automatic Refrigerant Recovery Station

Recovery Charging Vacuum Integrated

Product Description

Automatic Refrigerant Recovery Charging Station — 3-in-1 with Vacuum Pull-Down

One station now covers the complete service sequence. The operator recovers the refrigerant, pulls the circuit down to the required vacuum level, and charges the exact weight back in — without changing hoses or moving between three different machines. The automatic cycle control keeps every step within its own limit, which shortens service time and removes the most common source of charging error.

Key Features

Three functions integrated in a single trolley: recovery, vacuum, and charging
Automatic recovery stop when the preset vacuum is reached
Vacuum pull-down with hold test to confirm system tightness
Weighing-based charging from 10 g to 3000 g with 0.5 g resolution
Digital display of pressure, weight, and vacuum in real time
Self-purging cycle to prevent cross-contamination between refrigerants

Technical Specifications

Parameter	Specification
Functions	Recovery / vacuum / charging
Recovery rate	1.2 kg per minute liquid, 0.35 kg per minute vapour
Vacuum pump	7.2 CFM two-stage
Ultimate vacuum	20 microns
Charging range	10 – 3000 g
Scale resolution	0.5 g
Recovery cylinder	13.6 kg internal tank
Refrigerant types	R410A / R32 / R134a / R290 / R404A
Display	Pressure, weight, and vacuum digital gauges
Power supply	220 V 50/60 Hz

Typical Applications

Split and multi-split air conditioner servicing
R32 and R410A residential heat pump maintenance
Refrigeration container and cold room repair
Vehicle air conditioning workshops with R134a systems

Ordering and Support

Each station is packed in a reinforced carton with foam inserts. A recovery hose set, vacuum-rated hoses, and a calibration certificate are supplied with the unit.

For drawings, refrigerant compatibility confirmation, or a quotation, contact our sales engineers with your required charging range and production capacity.
