Automatic Refrigerant Filling Machine 2000g Weighing Scale 0.1g Resolution R134a R410A R32

Brand Name:	HongCe
Model Number:	HJ233
MOQ:	1 Set
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	1 Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangzhou, Guangdong, China

Certification:

Third-party certification certificate(cost additional)

Charging Range:

5 - 2000 G Per Cycle

Charging Accuracy:

±0.1% Of Set Value

Scale Resolution:

0.1 G

Scale Capacity:

30 Kg

Working Pressure:

1.6 - 3.5 MPa

Air Supply:

0.6 - 0.8 MPa Dry Air

Power Supply:

220 V 50/60 Hz Single Phase

Display:

7 Inch Colour Touch Screen

Packaging Details:

Plywood export case with shock absorbing foam, hose set and English manual included

Highlight:

Weighing Refrigerant Filling Machine

0.1g Resolution Electronic Scale

Automatic Refrigerant Charging

Product Description

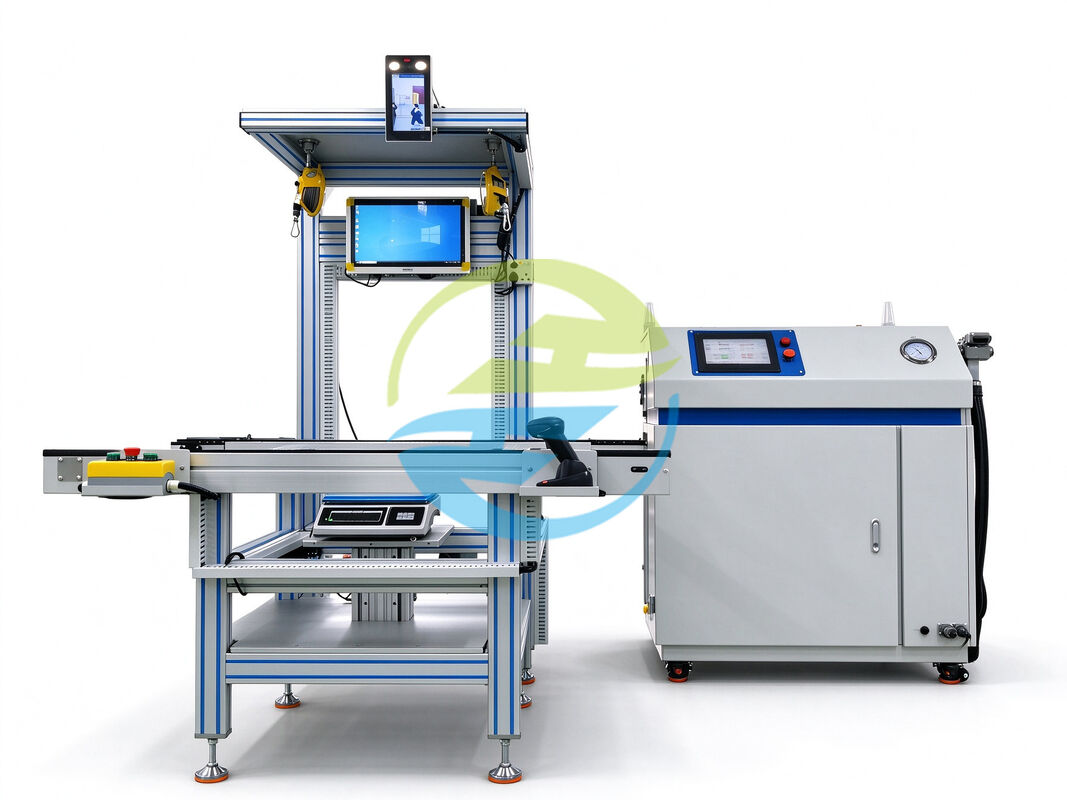

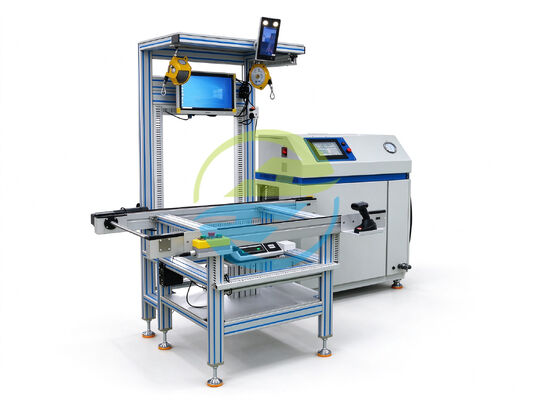

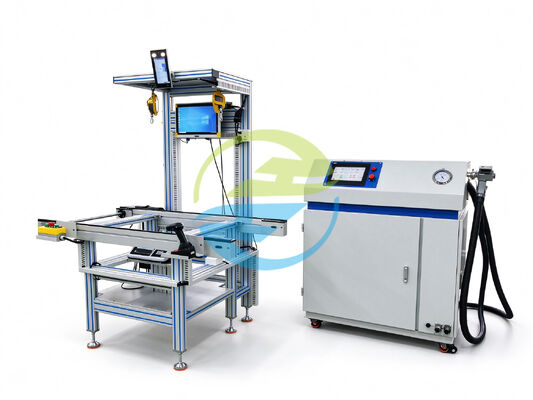

Automatic Refrigerant Filling Machine with Weighing Control

This automatic refrigerant filling machine charges by weight rather than by time or pressure, so every cylinder and every circuit receives the exact quantity that was programmed. A 2000 g weighing platform with 0.1 g resolution keeps the filling tolerance inside a 0.1 percent window, making the unit suitable for both workshop service work and small batch production lines.

Key Features

Fully automatic weighing-based filling cycle with one-button start
0.1 g scale resolution and 0.1 percent repeatable filling accuracy
Refrigerant library with presets for R134a, R410A, R32, R290 and R404A
Digital readout of charging weight, line pressure and vacuum level
Programmable charge quantity from 5 g to 2000 g per cycle
Stainless steel chassis with lockable castors for workshop mobility

Technical Specifications

Parameter	Specification
Charging range	5 – 2000 g per cycle
Charging accuracy	±0.1% of set value
Scale resolution	0.1 g
Scale capacity	30 kg
Refrigerant types	R134a / R410A / R32 / R290 / R404A
Display	7 inch colour touch screen
Control	PLC with recipe memory of 100 programs
Power supply	220 V 50/60 Hz single phase
Working pressure	1.6 – 3.5 MPa
Air supply	0.6 – 0.8 MPa dry air

Typical Applications

Air conditioner assembly and repair workshops
Heat pump water heater production lines
Commercial refrigeration unit servicing
Refrigerant cylinder filling and repacking stations

Ordering and Support

Standard export packing is a plywood case with shock-absorbing foam. Spare charging guns, a calibration weight set and an English operation manual are included.

For drawings, refrigerant compatibility confirmation or a quotation, contact our sales engineers with your required charging range and production capacity.
