IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable

Brand Name:	HongCe
Model Number:	SH-12
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Steel Ball Diameter:

50mm

Steel Ball Weight:

500±25g

Drop Height:

0.5-1.5m Adjustable

Clamping Release:

Electronic Control

Warranty:

1 Year

Standard:

IEC 60065:2014, IEC 60950-1 Etc

Usage:

Drop Impact Test

Test Sample:

Luminaries, Audio

Packaging Details:

plywood

Highlight:

Steel Ball Impact Test Apparatus

Figure 8 Impact Test Apparatus

1.5m Adjustable Impact Test Apparatus

Product Description

IEC60065 Figure 8 Steel Ball Impact Test Apparatus, Drop Height 0.5-1.5m Adjustable

Moreover, the non-ventilated solid areas of the enclosure that protect HAZARDOUS LIVE parts shall be subjected to a single impact, specified in Table 6.
The impact specified in Table 6 shall be caused by allowing a solid, smooth, steel ball of (50 ± 1) mm in diameter and with the mass of approximately 500 g to fall freely from rest through a vertical distance, as illustrated in Figure 8, and strike the enclosure with the specified impact in a direction perpendicular to the enclosure surface. Audio Video Test Equipment

IEC60065 Figure 8 Steel Ball Impact Test Apparatus Drop Height 0.5-1.5m Adjustable 0

Standard: IEC 60950-1 Clause 4.2.5, IEC 60598-1 Clause 4.13.4a), IEC 60065 Audio Video Test Equipment

Application: This device is suitable for drop impact test for equipment enclosure.

Test sample: Luminaries, Audio, video and similar electronic apparatus, Information technology equipment

Feature: Equipment can carry out test in two forms of vertical drop and swing impact

Parameters: Audio Video Test Equipment

Impact steel ball: diameter 50mm, 500±25g
Drop height: 0.5-1.5m adjustable
Lift mode: Electric
Clamping release mode: electronic control Audio Video Test Equipment

Impact steel ball	diameter 50mm, 500±25g
Drop height	0.5-1.5m adjustable
Lift mode	Electric
Clamping release mode	electronic control

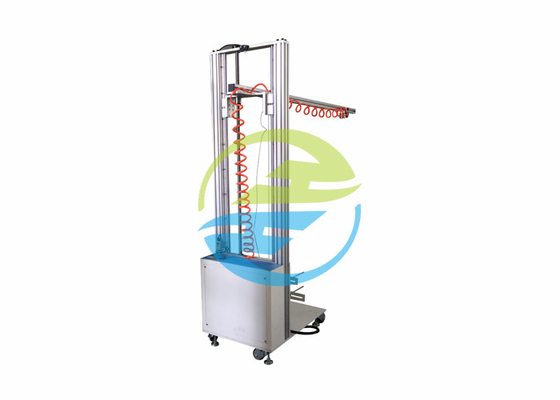

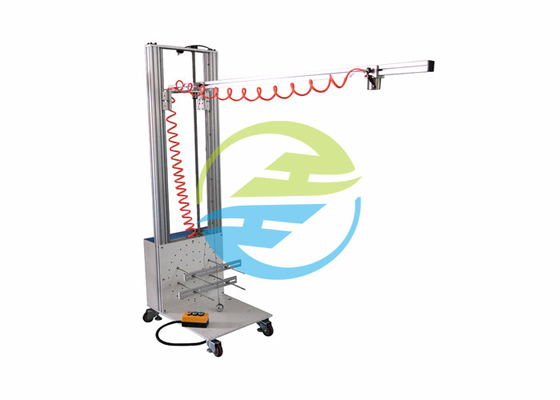

Picture for reference:
