| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | RK2674A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Test Accuracy: | ±5% | Transformer Capacity: | 400VA |
|---|---|---|---|
| Exterior Style: | Desktop Type | Standard: | IEC60065:2014 Clause 8.21 |
| High Light: | audio measurement equipment,drop test equipment |
||

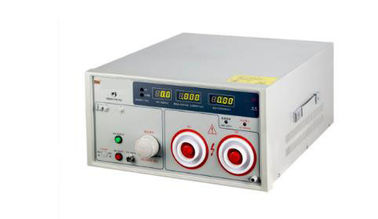

IEC60065:2014 clause 8.21 Hi-pot (Voltage Withstand) Tester
IEC60065:2014 clause 8.21 Hi-pot (Voltage Withstand) Tester Measuring The Voltage Withstand Strength
Standard:
Confirm to IEC60065:2014 clause 8.21, IEC60950, IEC60335, IEC60598-1.
Application:
RK2674 series withstand voltage tester is an instrument for measuring the voltage withstand strength. It can intuitive, accurate and fast to test the breakdown voltage of the sample to be tested, and leakage current and other electrical safety performance index, and can be used as a high voltage source to test the performance of components and the whole machine. The test is required a constant temperature water tank for testing.
Test sample:
Components: diodes, triodes, high voltage silicon reactors, various electronic transformers, connectors, high voltage electrical appliances
Household appliances: TV sets, refrigerators, air conditioners, washing machines, dehumidifiers, electric blankets, chargers, etc.
Insulation material: heat shrinkable sleeve, capacitor film, high voltage bushing, insulating paper, insulated shoes, insulating rubber gloves, PCB circuit board, etc.
Instrumentation: oscilloscope, signal generator, DC power supply, switching power supply, etc.
Lighting appliances: ballasts, road lights, stage lights, portable lights, etc.
Electric heating appliances: electric drill, pistol drill, gas cutting machine, grinding machine, grinding machine, electric welding machine, etc.
Wire and cable: high voltage wire, cable, silicone rubber cable, etc.
Feature:
1. The output voltage is regulated by the voltage regulator, which has high reliability and high durability
2. Using high-brightness LED digital tube to display test time, voltage, current, real-time display of breakdown current value and voltage value
3. The alarm current value can be continuously preset
4. The test time is displayed by three digital tubes
5. Equipped with the signal input and output interface required by PLC, can easily form a comprehensive test system with PLC
Parameters:
| Model | RK2674A | RK2674C | |
| Output Voltage (kV) | AC | 0~20 | 0~50 |
| DC | 0~20 | 0~50 | |
| Output Current (mA) | AC | 0~2/20 | 0~2/20/40 |
| DC | 0~2/10 | 0~2/20 | |
| Test accuracy | ±5% | ||
| Test time | (0.0~999)s 0.0=continuous test | 1-99s ±1% | |
| Transformer capacity | 400VA | 2000VA | |
| Interface of PLC | optional | No | |
| Power supply | AC:220V±10% 50Hz/60Hz | ||
| Working environment | Temperature:(0-40)℃ Humidity≦75%RH | ||
| Exterior style | Desktop type | Separate type | |
| Exterior dimension | 450×515×230 |
(1)370×300×200 (2)850×480×720 |
|
| Weight | 35kg | (1)11.5kg (2)65kg | |
| Accessory | High voltage test line, ground wire, power line | High voltage test line, ground wire, power line, high voltage discharge stick, connecting line | |
