Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Calibration certificate(cost additional) |
Model Number: | HJ0628 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | plywood |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 sets per month |
Manual Frequency Range (Hz): | 1~400 | Automatic Sweep Range (Hz): | 1~400 |
---|---|---|---|
Frequency Accuracy: | 0.01Hz | Excitation Mode: | Electromagnetic |
Highlight: | audio measurement equipment,drop test equipment |

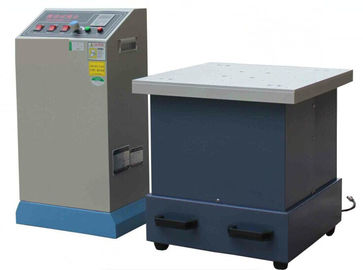

Vertical Electromagnetic Vibration Table
IEC60065:2014 clause 8.17 b Vertical Electromagnetic Vibration Table With Frequency Accuracy 0.01Hz
Standard:
Conforms to IEC60065:2014 clause 8.17 b), 12.1.3, IEC60950
Application:
It is used in the design, research and development, and manufacturing process of automobile parts, instruments, toys, and other industries. It simulates the collision and vibration generated by the products during transportation and use, and detects the actual working conditions and structural strength of the products.
Test sample:
Camping or similar refrigerating appliances, widely used in national defense, aviation, aerospace, telecommunications, electronics, automotive and motorcycle, home appliances industry.
Features:
1. The control frequency is accurate and balanced, and the long-term operation does not drift;
2. With a single point, segment, multi-stage time timing;
3. Stepless adjustment of amplitude, with frequency sweeping and fixed frequency function, to meet the test requirements of different industries;
4. The embedded amplitude prediction program and amplitude modulation are easy;
5. Four-point synchronous excitation, uniform vibration of the table;
6. Increase the anti-interference circuit to solve the interference caused by the strong electromagnetic field to the control circuit. The table is non-magnetic and static.
7. It is made of composite industrial materials, precision processing, beautiful and generous, humanized operation and control, and adopts special measurement and control module to make the equipment work more stable and more reliable.
Parameters:
Maximum load (kg) | 30/50/80/100 option |
Manual frequency range (Hz) | 1~400 |
Automatic sweep range (Hz) | 1~400 |
Frequency accuracy | 0.01Hz |
Maximum acceleration | <20g |
Amplitude (no load) mm | 0-5,(0.35mm) |
Excitation mode | Electromagnetic |
Amplitude modulation mode | Electronic amplitude modulation |
Vibration direction: | Vertical |
Vibration waveform | Sine wave |
Test mode |
Fixed frequency: 10 hours at 60Hz, will stop when the time reach ; Variety frequency: 5 minutes at 10Hz, 10 minutes at 20Hz... can be written once, and the machine automatically completes; Sweep frequency: 10Hz to 30Hz and return to 10Hz cycle test. |
Control system | Program setting |
Time range | 0-9999h/m/s arbitrary setting |
Vibration table size | 500×500mm |
Supply voltage (V/Hz) | 220/50±5% |
Power (KVA) | 1.6 |
