IEC60065 Audio Video Test Equipment Digimatic Caliper LCD Dispaly Repeatability 0.01mm / .0005

Product Details:

Place of Origin:	China
Brand Name:	HongCe
Certification:	Calibration certificate(cost additional)

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	plywood
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Resolution:

0.01mm Or .0005"/0.01mm

Repeatability:

0.01mm / .0005”

Length Standard:

Absolute Electrostatic Capacitance Type

Display:

LCD

Highlight:

audio measurement equipment

drop test equipment

Digimatic Caliper

Features:

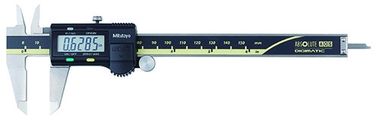

Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers.
It keeps track of its origin point once set. Whenever turned on, the large LCD displays the actual slider position ready to start measurement. No more repeated zero setting is necessary with the absolute encoder technology, as well as no more concern for over speed errors.

Large and clear LCD readout.
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
Data Hold Unit (959143) is optional.
Carbide-tipped jaw type calipers are also available.
With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.

Technical Data:

Accuracy: Refer to the list of specifications
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm / .0005”
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use

Order No	Model	Range	Accuracy	LCD Res	Remarks
500-170-30	AOS Digimatic Caliper	0-4in 0-100mm	±.001in	.0005in 0.01mm	.075" Round depth bar
500-195-30*	AOS Digimatic Caliper	0-4in 0-100mm	±.001in	.0005in 0.01mm	.075" Round depth bar
500-171-30	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	-
500-174-30	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	with OD carbide jaw
500-175-30	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	with OD,ID carbide jaw
500-178-30	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	.075 in rod depth bar
500-196-30*	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	-
500-159-30*	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	Carbide-tipped jaws for OD measurement
500-160-30*	AOS Digimatic Caliper	0-6in 0-150mm	±.001in	.0005in 0.01mm	Carbide-tipped jaws for OD and ID measurement
500-172-30	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	-
500-176-30	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	with OD carbide jaw
500-177-30	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	with OD,ID carbide jaw
500-197-30*	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	-
500-163-30*	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	Carbide-tipped jaws for OD measurement
500-164-30*	AOS Digimatic Caliper	0-8in 0-200mm	±.001in	.0005in 0.01mm	Carbide OD/ID Jaws
500-173	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	-
500-167	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	Carbide-tipped jaws for OD measurement
500-168	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	Carbide-tipped jaws for OD and ID measurement
500-193*	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	-
500-165*	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	Carbide-tipped jaws for OD measurement
500-166*	Digimatic Caliper	0-12in 0-300mm	±.0015in	.0005in 0.01mm	Carbide-tipped jaws for OD and ID measurement
500-505-10	Digimatic Caliper	0-18in 0-450mm	±.002in	.0005in 0.01mm	Without Thumb Roller
500-506-10	Digimatic Caliper	0-24in 0-600mm	±.002in	.0005in 0.01mm	Without Thumb Roller
500-507-10	Digimatic Caliper	0-40in 0-1000mm	±.003in	.0005in 0.01mm	Without Thumb Roller
