| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | RXDC-3 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Measuring Range: | 0.5～20～200～2000Ω | Thermal Resistance Response Time: | ＜30 Seconds |
|---|---|---|---|
| Measurement Accuracy: | Cold State ±0·1％READ＋0·1%FS, Thermal State ±0·15％READ＋0·15%FS | Temperature Rise: | Calculated According To The Formula Rise |
| High Light: | audio measurement equipment,drop test equipment |
||

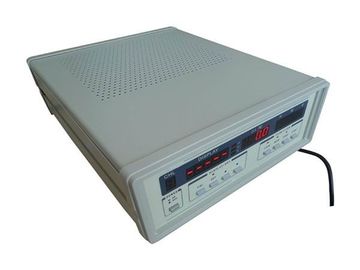

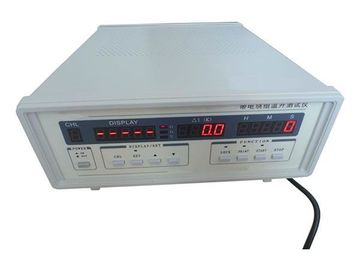

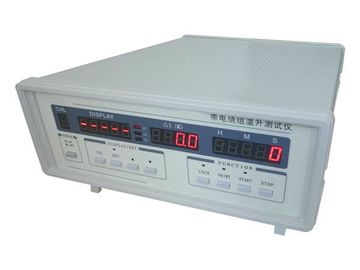

IEC 60065 clause 7.1 Hot Winding Resistance Meter RXDC-3/ RXDC-3A
Standard:Conforms to IEC 60065 clause 7.1, IEC60950, IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.
Application:Used for the winding temperature measurement of various household appliances and completed products(such as air conditioners, refrigerators, electric fans, washing machines, etc.)and other small power motor and transformers.
Test sample:Household appliances.
Feature:Single channel or dual channel can be selected.
Parameters:
1.Measuring range:0.5～20～200～2000Ω
2. Measurement Accuracy:cold state ±0·1％READ＋0·1%FS, thermal state ±0·15％READ＋0·15%FS
3. Ambient temperature:Measuring range 0～ 50℃,Measurement Accuracy ± 0·5℃
4. Temperature Rise:Calculated according to the formula rise
5. Thermal resistance response time:＜30 seconds
6. Experimental time:Maximum 99 hours 59 minutes 59 seconds,Accuracy ±0·1％
7. Winding temperature coefficient can be set to 0 ~ 999.9, all set parameters latched when power failure.
8. Instrument standard equipped serial port, can communicate with the computer serial
9. Testing software content: Record the temperature change data, display temperature curves, check printing.
10. Optional mini-printer, can print multi-channel temperature data timing, the print measurement time interval can be set by the user.
11. Standard equipped 25-pin parallel printer port, you can connect the printer directly to print test data; multi-channel temperature data can be regularly print, the measurement time interval can be set by the user.
12. Power supply:AC220V ±10％,50Hz /60Hz, Total power consumption＜15W
13. Operating environment:Operating Temperature 25℃±15℃; Humidity 60％±30％
