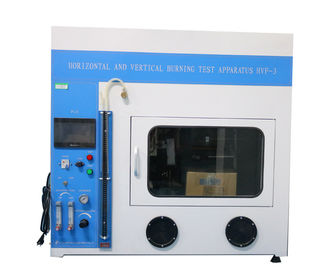

Horizontal / Vertical Flame Test Apparatus PLC Control 7 Inch Color Touch Screen Operation

Name: Horizontal / Vertical Flame Test Apparatus PLC Control 7 Inch Color Touch Screen Operation
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HVF-3
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HVF-3
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Power/grade:

50W And 500W Double Power Switching

Control Operation Mode:

PLC Control, 7 Inch Color Touch Screen Operation, With Infrared Remote Control

Gas Pressure:

0.1MPa

Gas Flow:

50W:105±5ml/min Or 18±1mm;500W：965±30ml/min Or 117±3 Mm，flow Meter Adjustment

Test Angle:

50W: 0°,45°; 500W: 20°

Lighting:

Equip With Lighting In The Test Chamber, With Control

Packaging Details:

plywood

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC60065:2014 clause14.1 Horizontal-vertical Flame Test Apparatus HVF-3

Standard:

Conforms to IEC60065:2014 clause 14.1, 20.2.1, 20.2.4, Annex G, UL94,IEC60695-11-2, IEC60695-11-3, IEC60695-11-4, IEC60695-11-10, IEC60695-11-20.

Application:

It simulates the influence of early-stage flame when there is a fire around the electric and electronic products, so that to judge the igniting danger degree. It is mainly used in plastic and other non-metallic material sample, solid material. It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.

Test sample:

It is also applicable in the Horizontal, vertical flammability test of the relative combustion characteristic of foam plastics whose density is no-less than 250kg/m according to ISO845 test method.

Feature:

This series of products adopt integral type inlet ignition system. The combustion time delays 0.1S thus to make sure the sufficient time of gas burning. They are with matte black background, multi-functional flame measure gauge, stainless steel of box full, large observation window, imported digital indicator of high precision, nice appearance. And they gather a number of advantages of similar products home and abroad.

Parameters:

ParametersModel	HVF-3(Touch screen)
Working voltage	220V/60Hz
Power/grade	50W and 500W double power switching
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote control
Blast burner standard	IEC60695-11-3/IEC60695-11-4/10,UL94,inner diameter:Φ9.5±0.3mm,length:100mm,made of brass
Gas pressure	0.1MPa
Gas flow	50W:105±5ml/min or 18±1mm;500W:965±30ml/min or 117±3 mm,flow meter adjustment
U type pressure gauge back pressure water column height	50W:10mm; 500W:125±5 mm
Test angle	50W: 0°,45°; 500W: 20°
Burning time	0-9999X0.1S Can be preset
Burning times	0-9999 times,Can be preset
Residual flame/Residual glow	0-9999X0.1S Can be displayed
Test flame calibration	Temperature measuring copper head:50W:Ф5.5mm±0.01mm,weight before drilling 1.76 ± 0 .01 g；500W:Ф9mm±0.01mm,weight before drilling 10 ± 0 .05g
	Thermocouple:The American original Omega φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple, temperature resistance 1100°
	Distance between the bunsen burner port to temperature measuring copper block:50W: 10±1 mm; 500W: 55±1 mm
	Flame height:50W: 20±2mm(there is no internal and external flame); 500W: Inner flame:40±2mm,Outer flame:125±10mm
	Temperature rise time from100±2°to 700°±3°50W: 44±2S; 500W: 54±2S
Lighting	Equip with lighting in the test chamber, with control
Test chamber and dimension	> 0.75 cube,black inwall,with exhaust fan, dimension:11005501200mm, 140kg
