| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HC9908A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 10 sets per month |
| Test Sample: | Fixed Socket-outlet, Plug-in Equipment | Torque Arm: | 8mm |
|---|---|---|---|
| Feature: | Mechanical, Measuring Torque And Tension | Weight: | 4N *1, 20N *2, 50N *1 |
| High Light: | audio measurement equipment,drop test equipment |
||

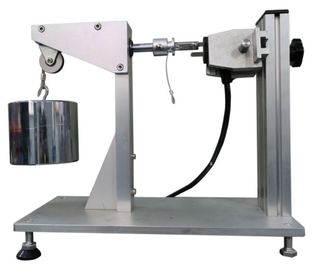

IEC60065:2014 clause 15.4.3 b and c Pin Torque Test Apparatus HC9908A
Standard:
Conforms to IEC60065:2014 clause 15.4.3 b) and c), IEC60950
Application:
It is use to verify the fixation of device provided with pins intended to be introduced into fixed socket-outlets.
Test sample:
fixed socket-outlet, plug-in equipment
Feature:
Mechanical, measuring torque and tension
Parameters:
1. Weight: 4N one, 20N two, 50N one, can be used to achieve 40, 50, 54, 70N pull force. 50N weight can be used for torque weight
2. Torque arm: 8mm
3. Pull test needs to support high temperature oven
