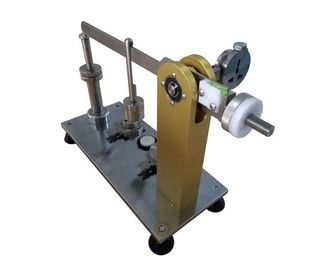

8mm Plug Torque Test Apparatus To Testing The Strain Force Of Insertion

Name: 8mm Plug Torque Test Apparatus To Testing The Strain Force Of Insertion
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC9908
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HC9908
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Distance From The Contact Surface And The Axis Of The Surface:

8mm

Balancing Arm:

0-250mm

Weight:

2.5N, Can Achieve 0.25Nm To 0.4Nm Torque Force

Test Sample:

Fixed Socket-outlet, Plug-in Equipment

Packaging Details:

Carton box

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC60065:2014 clause 15.4.1Plug torque test apparatus HC9908

Standard:

Conforms to IEC60065:2014 clause 15.4.1 and figure 11, IEC 60884-1 2013 clause 14.23.2, IEC 60335-1 clause 22.3, IEC60065 clause 15.4.1 and figure 11

Application:

This device is use to test the strain force of insertion. A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

Test sample:

fixed socket-outlet, plug-in equipment

Feature:

According to the standard, measuring the torque force of the plug introduce into the socket.

Parameters:

Distance from the contact surface and the Axis of the surface: 8mm;
Balancing arm: 0-250mm;
Weight: 2.5N, can achieve 0.25Nm to 0.4Nm torque force;
Configure: all-purpose plug(suit for GB and BS plug), UL plug, European plug, one each
