Clause 13.4 Tracking Test Equipment Determination Of The Relative Resistance To Tracking Performance

Brand Name:	HongCe
Model Number:	LT-3
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Electrode Material:

Platinum

Electrode Pressure:

1±0.05 N

Electrode Angle:

60°

Short-circuit Current:

1±0.1A 1％

The Height Of The Drip:

30～40mm

Drip Interval:

Adjustable

Packaging Details:

plywood

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC 60065:2014 clause 13.4 Tracking Test Equipment

Standard:

Conforms to IEC 60065:2014 clause 13.4, IEC60335-1 clause 29.2, Annex N

Application:

It is used for determination of the relative resistance to tracking performance that solid electrical insulating material under the action of an electric field, when the surface exposed to water containing impurities.

Test sample:

Lighting equipment, low-voltage electrical appliances, household electrical appliances, machine tools, electrical appliances, electric motors, electric tools, electronic instruments, electrical instruments, information technology equipment, insulation materials, engineering plastics, electrical connectors, accessories industry.

Feature:

The working principle of the leakage tracking test(tracking index testing) is that the conducting liquid (0.1%NH 4 CL) of required volume in the required height (35mm ) and required time (30s) drops with the voltage between the platinum electrodes (2mm× 5mm )on the surface of solid insulating material. Thus the users evaluate the tracking resistance performance of solid insulating material surface under the combined influence of electric field and humid or contaminate medium. In a word, this device is used to measure the compare tracking index (CT1) and electrical resistance index (PT1).

Parameters:

Timing device	9999X0.1S Resolution	Drip interval	Adjustable
Electrode material	Platinum	The height of the drip	30～40mm
Electrode specifications	5mm*2mm	Drip delay	0.2S (solenoid valve open time)
Electrode spacing	4±0.1mm	Drip size	45 ~ 50 drops / cm³
Electrode pressure	1±0.05 N	Delay electric circuit	2 ± 0.1S (at 0.5A)
Electrode angle	60°	Test voltage range	0～600V 1.5％
Short circuit voltage drop	8% MAX	Electrical parameters	1.5KW/127VAC/60Hz
Short-circuit current	1±0.1A 1％	Working volume	> 0.5 M³(0.1 M³by option)
Environmental requirements	0 ~ 40 ℃ / ≤ 80% relative humidity
Standards	GB4207, GB4706, IEC60695, IEC60112, UL746A, ASTMD3638.

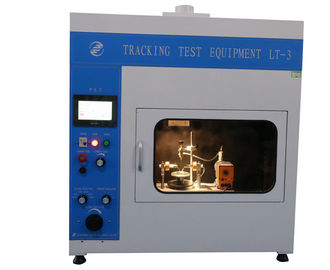

Picture for reference:
