IEC 60065 2014 Clause 13 Creepage Distance Test Gauge To Determine Shortest Path Between Two Conductive Parts

Name: IEC 60065 2014 Clause 13 Creepage Distance Test Gauge To Determine Shortest Path Between Two Conductive Parts
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: CK-5
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	CK-5
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Standard:

IEC 60065:2014 Clause 13

CK-2:

15 Creepage Distance Gauges

CK-5:

30 Creepage Distance Gauges

Packaging Details:

Carton box

Highlight:

audio measurement equipment

drop test equipment

Product Description

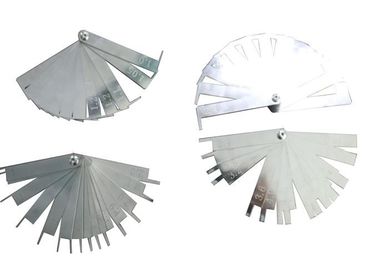

Creepage Distance Test Gauge CK-5

Product information:

We have five kinds of Creepage Distances Test Cards, CK2 and CK5.These test gauges conform to IEC 60065:2014 clause 13, IEC60884-1, IEC60598, and IEC60335-1 Clause 29 etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

Technical parameters:

Model No.

Size Specification

CK-2

1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges

CK-5

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges
