Stainless Steel Fig9 Test Plug Audio Video Test Equipment For Mechanical Test On Antenna Coaxial Sockets

Stainless Steel Fig9 Test Plug Audio Video Test Equipment For Mechanical Test On Antenna Coaxial Sockets

  • Stainless Steel Fig9 Test Plug Audio Video Test Equipment For Mechanical Test On Antenna Coaxial Sockets
Stainless Steel Fig9 Test Plug Audio Video Test Equipment For Mechanical Test On Antenna Coaxial Sockets
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate(cost additional)
Model Number: HT-I19
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton box
Delivery Time: 20 days
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Standard: IEC60065:2014 Clause 12.5 Figure 9 Test Sample: Audio, Video And Similar Electronic Apparatus
Naterial: Stainless Steel Aperture: Ф1.5
High Light:

audio measurement equipment

,

drop test equipment

IEC60065:2014 clause 12.5 Figure 9 Test Plug For Mechanical Tests On Antenna Coaxial Sockets



Standard:

IEC60065:2014 clause 12.5 Figure 9.



Application:

It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process.



Test sample:

Audio, video and similar electronic apparatus.



Feature:

It is made entirely of stainless steel. All parts are machined with precision.



Parameters:



Model HT-I19
Diameter of the end of a 9.576 0 -0.1
b 8.05 Minimum
c 2.438 0 -0.1
d 9.1 Minimum
e 7.112 Minimum
f 0.8±0.4
g 40±0.4
h 12±0.4
j 43±0.4
k R0.3
Aperture Ф1.5

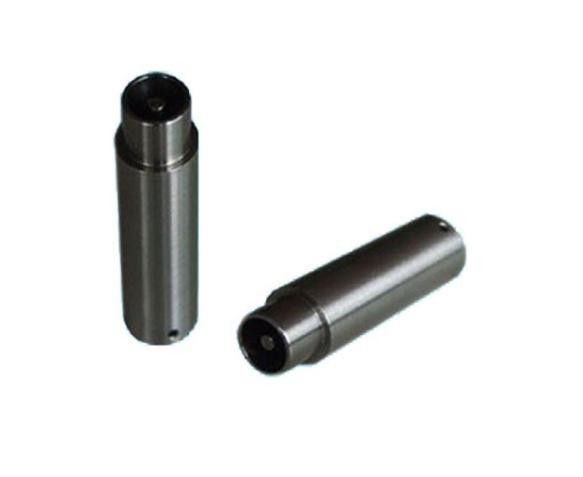

Picture for reference:

Stainless Steel Fig9 Test Plug Audio Video Test Equipment For Mechanical Test On Antenna Coaxial Sockets 0
