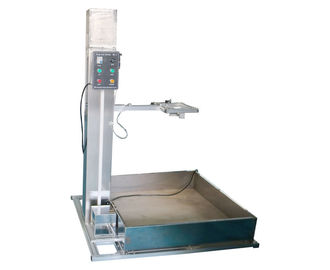

High Stable Audio Video Test Equipment / Pneumatic Drop Test Equipment

Brand Name:	HongCe
Model Number:	SH-14
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Release Mode:

Pneumatic

Drop Height:

750mm Or 1000mm, Electric Adjustable

Drop Floor:

Hardwood At Least 13 Mm Thick, Mounted On Two Layers Of Plywood Each 19 Mm To 20 Mm Thick, 1000*1000mm*(51~60)mm

Test Sample:

Audio, Video And Similar Electronic Apparatus, Information Technology Equipment, Luminaries

Packaging Details:

plywood

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC 60065:2014 clause 12.1.5 Drop Test Device

Standard:

Conforms to IEC 60065:2014 clause 12.1.5, 15.4.3 a), 12.7.3.4, IEC 60950-1 Clause 4.2.6, IEC 60598-1 Clause 4.13.4b)

Application:

This device is suitable for verify the drop resistance performance of audio, video and similar electronic apparatus having a mass of 7kg or less, information technology equipment having a mass of 5 kg or less, and portable lamp .

Test sample:

Audio, video and similar electronic apparatus, Information technology equipment, Luminaries

Feature:

Also known as the single arm drop tester, carton drop test machine. Can carry on the multi direction drop to the packing product. In the test, the support arm rapid downward movement and then rotating, to ensure test sample free separate with the support arm. Samples free fall, angle error is less than 5 degrees, the impact of small vibration, stable and reliable, is the real surface, edge and corner drop test machine.

Parameters:

Model	SH-14
Release mode	Pneumatic
Drop floor	hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, 10001000mm(51~60)mm
Drop height	750mm or 1000mm, Electric adjustable
Test sample	information technology equipment having a mass of 5 kg or less, and portable lamp; audio, video and similar electronic apparatus having a mass of 7kg or less
