IEC 60065 Audio Video Test Equipment / Spring Operated Impact Hammer

Brand Name:	HongCe
Model Number:	SH-0.5
MOQ:	1 set
Price:	Negotiation
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Material:

Stainless Steel

Test Sample:

Shell, Operating Arm, Handle, Knob, Indicator Lights And Shades

Standard:

IEC 60068-2-63, IEC 60068-2-75

Application:

Intended To Test The Impact Resistance To The Sample

Packaging Details:

Aluminum box

Highlight:

audio measurement equipment

drop test equipment

Product Description

IEC 60065 Spring Operated Impact Hammer

Standard:

IEC 60068-2-63, IEC 60068-2-75 test Ehb, IEC 60335-1, IEC 60598-1, IEC 60950, and IEC 60065

Application:

This device is intended to test the impact resistance to shell, operating arm, handle, knob, indicator lights and shades of electrical appliance for household or similar purpose, to verify the safety performance and strength of the product.

Test sample:

Shell, operating arm, handle, knob, indicator lights and shades

Feature:

1. The impact hammer is composed of three parts:

A. Shell. Includes housing, impact element guide and release mechanism, and parts fixed on these parts.

B. Impact element. Including the hammer, hammer tail and firing handle.

C. Release cone.

2. Working principle

The hammer generate impact energy by the mass and movement of impact element. When pulling the operating handle, release claw stop at the impact element release point, the hammer spring is pressed, when the compression quantity is different, the spring will release the different energy. For multi energy impact hammer, rotate the end cover to select corresponding impact energy. The impact energy was calibrated on calibration facility before delivery.

Parameters:

Model	SH-0.14/SH-0.2/SH-0.35/SH-0.5/SH-0.7/SH-1	SH-2	SH-5	SH-6
Impact energy(J)	0.14; or 0.2; 0.35; 0.5; 0.7; 1.0	2±0.1	0.2 and 0.35, 0.5, 0.7, 1	0.14 and 0.2, 0.35, 0.5, 0.7, 1
Impact element mass	250g±5g	500g±5g	250g±5g	250g±5g
Overall mass	1250g±10g	1500g±10g	1450g±10g	1450g±10g
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel

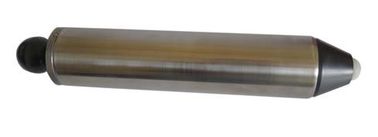

Picture for reference:

Multi energy type

Single energy 2J type
