| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | SH-0.5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Aluminum box |
| Delivery Time: | 7 days |
| Supply Ability: | 10 sets per month |
| Material: | Stainless Steel | Test Sample: | Shell, Operating Arm, Handle, Knob, Indicator Lights And Shades |
|---|---|---|---|
| Standard: | IEC 60068-2-63, IEC 60068-2-75 | Application: | Intended To Test The Impact Resistance To The Sample |
| High Light: | audio measurement equipment,drop test equipment |
||
IEC 60065 Spring Operated Impact Hammer
Standard:
IEC 60068-2-63, IEC 60068-2-75 test Ehb, IEC 60335-1, IEC 60598-1, IEC 60950, and IEC 60065
Application:
This device is intended to test the impact resistance to shell, operating arm, handle, knob, indicator lights and shades of electrical appliance for household or similar purpose, to verify the safety performance and strength of the product.
Test sample:
Shell, operating arm, handle, knob, indicator lights and shades
Feature:
1. The impact hammer is composed of three parts:
A. Shell. Includes housing, impact element guide and release mechanism, and parts fixed on these parts.
B. Impact element. Including the hammer, hammer tail and firing handle.
C. Release cone.
2. Working principle
The hammer generate impact energy by the mass and movement of impact element. When pulling the operating handle, release claw stop at the impact element release point, the hammer spring is pressed, when the compression quantity is different, the spring will release the different energy. For multi energy impact hammer, rotate the end cover to select corresponding impact energy. The impact energy was calibrated on calibration facility before delivery.
Parameters:
| Model | SH-0.14/SH-0.2/SH-0.35/SH-0.5/SH-0.7/SH-1 | SH-2 | SH-5 | SH-6 |
| Impact energy(J) | 0.14; or 0.2; 0.35; 0.5; 0.7; 1.0 | 2±0.1 | 0.2 and 0.35, 0.5, 0.7, 1 | 0.14 and 0.2, 0.35, 0.5, 0.7, 1 |
| Impact element mass | 250g±5g | 500g±5g | 250g±5g | 250g±5g |
| Overall mass | 1250g±10g | 1500g±10g | 1450g±10g | 1450g±10g |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |

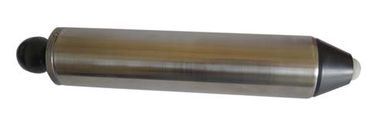

Picture for reference:
Multi energy type
Single energy 2J type
