| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HT-I18 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton box |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
| Probe Length: | 180±0.05 | Probe Width: | 8±0.15 |
|---|---|---|---|
| Hook Length: | 5±0.05 | Test Hook Thickness: | 1±0.15 |
| High Light: | audio measurement equipment,drop test equipment |
||
IEC 60065:2014 clause 9.1.1.7 Anti Shock Probe Experiment Device CT-2
Standard:
Conforms to IEC 60065:2014 clause 9.1.1.7, figure 4, 12.7.4
Application:
It is used to test the enclosure mechanical strength of audio, video and similar electronic apparatus.
Test sample:
Audio, video and similar electronic apparatus.
Feature:
It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force 20±2 N last for 10s. The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.
Parameters:
| Name/Model | Test hook probe /HT-I18 |
| Probe length | 180±0.05 |
| Probe width | 8±0.15 |
| Hook length | 5±0.05 |
| Test hook thickness | 1±0.15 |
| Test hook angle | 90° |
| Material | Stainless steel |

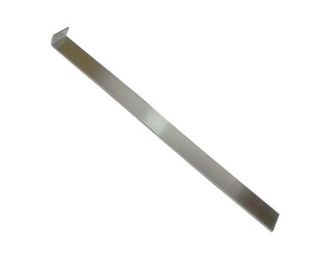

Picture for reference :
