IEC 60065 2014 Clause 9.1.1.2 Anti Shock Probe Experiment Device For Showing Contact With Relevant Parts

IEC 60065 2014 Clause 9.1.1.2 Anti Shock Probe Experiment Device For Showing Contact With Relevant Parts

Brand Name: HongCe
Model Number: CT-2
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Electrode Output Testing Voltage:
AC40-50V
Temperature Environment:
0-40
Test Sample:
Electrical Socket-outlet Or Similar Electrical Appliances And Other Hazardous Live Part
Application:
Showing Contact With The Relevant Parts
Packaging Details:
Carton box
Highlight:

audio measurement equipment

,

drop test equipment

Product Description

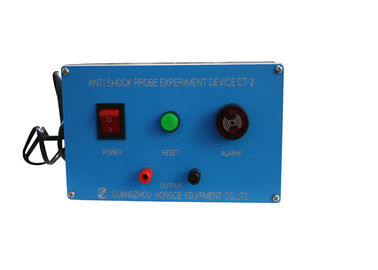

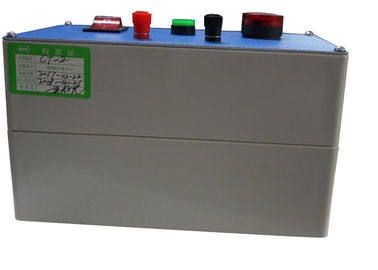

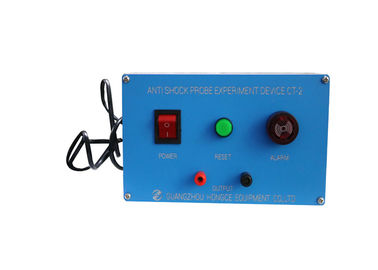

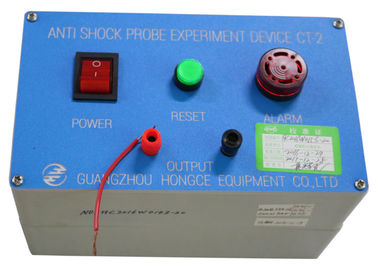

Anti Shock Probe Experiment Device CT-2



Standard:

Conforms to IEC 60065:2014 clause 9.1.1.2.



Application:

It is used with the anti-electric shock test finger or other testing probes for showing contact with the relevant parts.



Test sample:

Electrical socket-outlet or similar electrical appliances and other hazardous live part.



Feature:

In the two output electrodes, the low potential (the red one) is connected with the energized part of the electrical appliance and the high potential is connected with the input terminal of the probe used. At this time, conduct the circuit and push the button of start. Then use the probe to touch the parts that maybe electrified. If the alarm of the equipment sounds, it is proved that the testing part is electrified. Then push the button of reset and cut down the circuit.



Parameters:

1. Working voltage:AC 220V±5% 50HZ±1%

2. Electrode output testing voltage:AC40-50V

3. It is suitable to use this equipment in such environment:

        Temperature: 0-40

         Relative humidity:≤80%

         No shaking and no corrosive gas
