| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HT-I09 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Aluminum box |
| Delivery Time: | 5 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20 sets per month |
| Metal Pin Tip Diameter: | Ф3 (0, -0.05) | Metal Pin Tail Diameter: | Ф4 (0, -0.05) |
|---|---|---|---|
| Metal Pin Length: | 15 (0, -0.1) | Baffle Diameter: | Ф25±0.2 |
| Handle Diameter: | Ф10 | Handle Length: | 20 |
| High Light: | audio measurement equipment,drop test equipment |
||
IEC 60065 clause 9.1.1.2 Short Test Probe HT-I09
Standard:
Conforms to IEC 60065 clause 9.1.1.2, IEC61032 figure 9 Test probe13, IEC60950 figure 2B, IEC60335 and IEC60065.
Application:
This pin is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment.
Test sample:
Easily accessible enclosure live parts or mechanical parts.
Feature:
It can be used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).
Parameters:
| Model/ Parameter | HT-I09 |
| Item Name | Short test pin probe |
| Metal pin tip diameter | Ф3 (0, -0.05) |
| Metal pin tail diameter | Ф4 (0, -0.05) |
| Metal pin length | 15 (0, -0.1) |
| Baffle diameter | Ф25±0.2 |
| Baffle thickness | 4 |
| Handle diameter | Ф10 |
| Handle length | 20 |

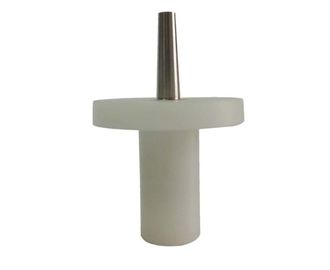

Picture for reference:
