IEC60065 Figure 13 Finger Children Test Probe 19 To Test Whether The Hazardous Parts Can Be Touched

IEC60065 Figure 13 Finger Children Test Probe 19 To Test Whether The Hazardous Parts Can Be Touched

IEC60065 Figure 13 Finger Children Test Probe 19 To Test Whether The Hazardous Parts Can Be Touched

Brand Name:	HongCe
Model Number:	HT-I13
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Hemispherical:

R2.8±0.05

Finger Probe Diameter:

Ф5.6±0.1

Finger Probe Length:

44±0.15

Joint Distance:

14.67

Axes Of Joints Diameter:

Ф25.9±0.3

Axes Of Joints Length:

101.6±0.3

Packaging Details:

Aluminum box

Highlight:

audio measurement equipment

,

drop test equipment

Product Description

IEC 60065:2014 clause 9.1.1.3 Children Test Probe 19

Standard:

Conforms to IEC 60065:2014 clause 9.1.1.3, IEC61032 figure 13 finger probe 19, IEC335.1,UL1017.

Application:

It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

Test sample:

Easily accessible enclosure live parts or mechanical parts.

Feature:

Can be combined with the push-pull gauge to achieve force of 10N load test.

Parameters:

Name/Model	Children Finger Probe 19/HT-I13
Hemispherical	R2.8±0.05
Finger probe diameter	Ф5.6±0.1
Finger probe length	44±0.15
Joint distance	14.67
Axes of joints diameter	Ф25.9±0.3
Axes of joints length	101.6±0.3
Handle diameter	Ф25.4±0.3
Handle length	464.3±0.8

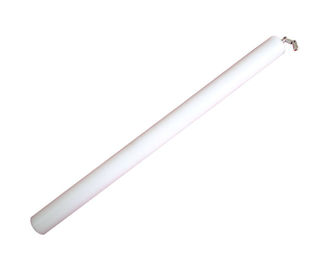

Picture for reference:
