| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HK1501 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets per month |
| Standard: | IEC 60065:2014 Clause 5.1 | Test Stroke: | 10-60mm |
|---|---|---|---|
| Speed: | 5-60/min | Counter: | 0-99999999 Adjustable |
| Weight: | 50, 100, 200, 300,500g Two Each | Accessories: | Alcohol Rubbing Fixture 2 Pcs |
| Highlight: | audio measurement equipment,drop test equipment |
||

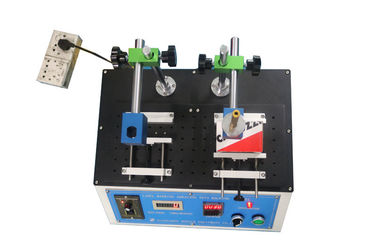

IEC 60065:2014 clause 5.1 Label Marking Abrasion Test Machine
Standard
It conforms to IEC 60065:2014 clause 5.1, IEC 60335-1 clause 7.14, IEC 60669-1 clause 8.9, IEC 60950 and etc.
Product information
The Alcohol Rubber Rubbing Tester is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface
Technical parameters
| Specification: | Two axes (can be used as both rubber and alcohol friction, pencil hardness test can also be added) |
| Test stroke: | 10-60mm, adjustable(Manually adjustable) |
| Speed: | 5-60/min, adjustable |
| Counter: | 0-99999999 adjustable |
| Weight: | 50, 100, 200, 300,500g Two each, Can be customized according to user requirements |
| Voltage: | 220V |
| Machine size: | 500*300*550mm |
| Accessories: | Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pcs, cotton cloth, eraser 2 pcs |
