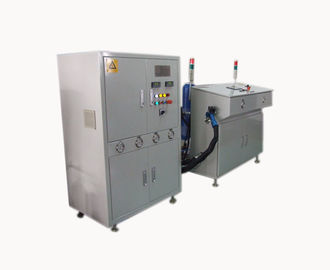

PLC control R22 R410A Refrigerant Filling Machine For Refrigerator Freezers

PLC control R22 R410A Refrigerant Filling Machine For Refrigerator Freezers
PLC control R22 R410A Refrigerant Filling Machine For Refrigerator Freezers

Large Image :  PLC control R22 R410A Refrigerant Filling Machine For Refrigerator Freezers

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T
Detailed Product Description
Filling Refrigerant: R22 , R410A Filling Range: 1.0 - 1.5 KG
Filling Accuracy: ≤ ± 0.5g ( Below 100g ) , ≤±0.5 % ( Above 100g ) Calibration: RHEONIK Mass Flow Meter
High Light:

helium leak detection

,

helium leak testing

R22 R410A Refrigerant Filling Machine For Refrigerated Freezers



Application



Refrigerant filling machine is suitable for refrigerant filling process for refrigerators, freezers, air conditioners and other refrigerated freezers, and also for central air conditioning, train air conditioning, heat pumps and other industries.



Equipment working process



After the filling gun is connected to the workpiece, press the start switch, the filling machine automatically vacuums the connection pipe. When the vacuum reaches to the specific value, the filling valve opens automatically, then fill with the workpiece. When the amount of refrigerant reaches to the specific value, the system will automatically close the filling valve, then a signal light appears, filling process is finished.

Technical parameters:



Parameters



Filling speed

80g/s

Restricted by the workpiece ‘s interface

Filling accuracy ≤±0.5g(Below 100g) , ≤±0.5%( Above 100g)
Calibration method

RHEONIK mass flow meter

Cycle time 36s/pc for product ≤4.6Kg
 Filing gun

Using dual-channel design for completion of the vacuum and filling process separately ; filling tip is with the function of identifying whether the refrigerant has been filled into the workpiece.

Size of Filing tip :1/4″or 3/8

Compressed air pressure 0.5-0.7Mpa Dry compressed air





Feature:

  • PLC control system, touch screen display
  • Automatically complete vacuum and refrigerant filling process, no need manual operation
  • High precision refrigerant, high stability filing.
  • 20 groups of filling procedures are available.
  • automatic identify the refrigerant empty cans
  • with a roller, the device can be moved or fixed as needed
