| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration certificate(cost additional) |
| Model Number: | HJ-LT-2-1 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 60 days |
| Payment Terms: | T/T |
| Supply Ability: | 1 Sets per month |
| Workpiece To Be Inspected: | Cylindrical Cell For Electric Vehicles | Workpiece Vacuum Degree: | 0-90kpa |
|---|---|---|---|
| Helium Return Pressure: | 5-10kpa | Equipment Material: | Stainless Steel |
| Leak Detection: | Pressure Decay Method | Production Cycle: | 60s/pc |
| Test Station: | Single Or Customizable | Workpiece Installation: | Manually |
| High Light: | Cylindrical Cell Helium Charging Equipment,Cylindrical Battery Helium Charging Equipment |
||
Cylindrical Cell Helium Charging And Helium Leak Testing Equipment for Electric Vehicles
Helium Leak Testing Equipment function:
The equipment is equipped with automatic sealing, evacuation, leak detection and helium filling functions for workpieces.
After the operator installs the electric vehicle cylindrical cell into the fixture, the sealing fixture automatically seals the cell; then the equipment automatically vacuums the cell until it reaches the set vacuum level and maintains the vacuum level for a certain period of time, and at this time, judge whether there is any leakage of the cell according to the value of the pressure drop inside the cell, and if there is no leakage of the cell, the equipment will automatically charge helium to the cell at the set value.
And through the PLC program control, different programs can be switched to meet the different heights (80-135MM) of the workpiece work, with diversified, automated performance.
Technical parameters for Helium Leak Testing Equipment:
| No. | Project | Parameters |
| 1 | Workpiece to be inspected | Cylindrical Cell |
| 2 | Workpiece vacuum degree | 0-90kpa |
| 3 | Station | Single station |
| 4 | Helium return pressure | 5-10kpa |
| 5 | Production cycle | 60 s/piece |
| 6 | size | 1000*1000*2200 |
| 7 | guarantee period | 1 year |

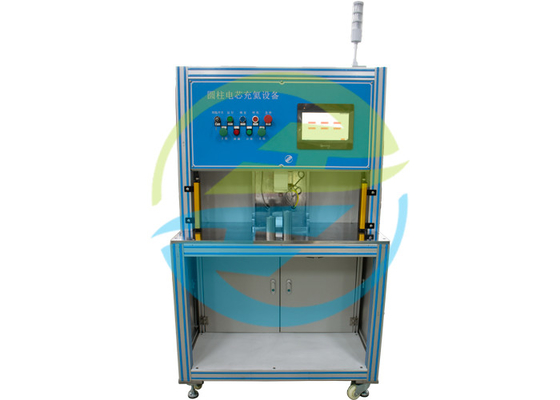

Product details:
