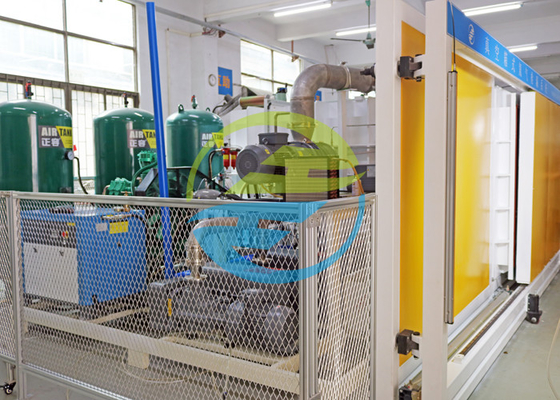

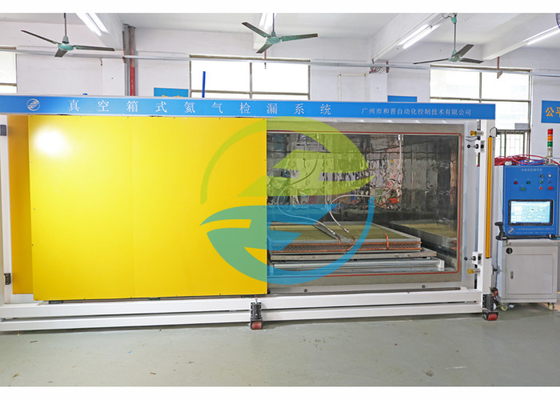

Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure

Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure

  • Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure
  • Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure
  • Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure
Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HJ099
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 1 Sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Workpiece: Air Conditioner Heat Exchanger
Chamber Size: 2m*2.5m*1.3m Gas For Gross Leak Detection: Nitrogen
Gross Leak Pressure: 0.1-4.5Mpa Tracer Gas: Helium
Equipment Alarm Leak Rate: 1g/year Cycle: 20 Minutes/chamber
High Light:

Vacuum Chamber Helium Leak Detection System

,

4.5Mpa Helium Leak Detection System

Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure​



Basic working principle :

According to the basic leak detection principle of helium leak detection, helium gas is used as tracer gas, and helium gas is filled into the workpiece in the vacuum box, and then the leakage of the workpiece can be quickly and accurately judged by the helium leak detector.

Basic functions :                                                   Helium Leak Testing Equipment

The operator connects the workpiece interface with the quick connector in the vacuum box. After the door of the vacuum box is closed, the system can automatically complete the large leak detection, vacuuming, helium filling, micro leak detection, helium recovery, and fast production tact. High leak detection accuracy .



Basic technical indicators :





Workpiece Air conditioner heat exchanger
Chamber size 2m*2.5m*1.3m (dimensions provided by the user)
Number of vacuum chambers 1
The pipeline in the vacuum chamber 2 roots               Helium Leak Testing Equipment
Gas for gross leak detection Nitrogen
Gross Leak Pressure 0.1- 4.5 Mpa ( this range is adjustable )
Tracer gas Helium
Equipment alarm leak rate 1g/year ( 5 *10- 7pa.m 3 /s )
Leak helium pressure 0.1- 4.5 Mpa ( this range is adjustable )
Production cycle 20 minutes/chamber (close to open)
Customer Process Tube Channel Diameter Inner diameter ≥ 8mm
Workpiece loading and unloading Manual loading and unloading
Data storage With data storage function
Scan code With scan code gun
Quick Clamps/Connectors 1 set                               Helium Leak Testing Equipment



Equipped with an all-in- one computer , equipped with a two-dimensional code scanning gun to read the product code (the scanning gun is provided by the equipment supplier), the data of product code, inspection time, inspection personnel, total production, yield rate, defective rate and other data can be real-time Save as ACCESS database , and can export Excel files at the same time, the software has a variety of models corresponding to specifications and parameter memory, and the operation is simple and convenient                   Helium Leak Testing Equipment



Vacuum Chamber Type Helium Leak Detection System 0.1-4.5Mpa Gross Leak Pressure 0
