Vacuum Auto Helium Leak Detection Equipment For High Voltage Switch Gears

Brand Name:	HongCe
Model Number:	HC
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Workpiece:

High Voltage Switch Gears

Vacuum Chamber:

1pc

Reject Point:

5.0E-6mbar.L/sec.

Helium Recovery Rate:

≥98%

Packaging Details:

Plywood

Highlight:

helium leak test equipment

helium leak testing

Product Description

Auto Helium Leak Detection Equipment For High Voltage Switch Gears With SF6 Filling System

Product Introduction:

According to the basic leak detection principle of helium, the system uses helium as the tracer gas, helium filled into the helium chamber, and then detect the leak within the helium signal through the helium leak detector, can quickly and accurately determine the leakage accuracy of the workpiece

Technical Parameters:

Workpiece	High Voltage Switch Gears
Vacuum chamber	1pc, 230010001850mm
Detectability	Each chamber can test 1-3 workpieces at the same time)
Tracer gas	100% Helium
Test Cycle	1 hour /chamber
SF6 filling pressure	0.04MPa (GP)
Helium Detection Pressure	0.04MPa (AP)
Reject point	5.0E-6mbar.L/sec.
Helium Filling Time	≥70s
Helium Recovery Rate	≥98%

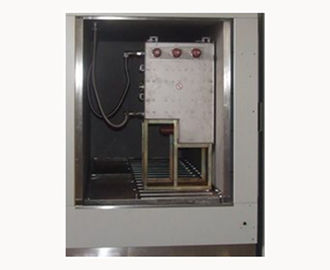

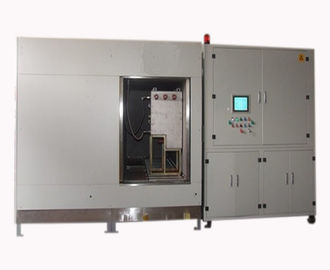

Picture for Reference:

Vacuum Auto Helium Leak Detection Equipment For High Voltage Switch Gears 0

Application

The system is suitable for air tightness detection and helium filling of SF6 High Voltage Switch Gears. It mainly refers to filling helium into workpieces, processing helium recovery filling SF6 gas into workpiece within the specified time, then control the filling pressure to guarantee the qualified rate of the product.

Operation process

The system has 1 vacuum chamber. The operator puts the workpiece into the fixture in the vacuum chamber, connects the workpiece interface with the quick connector, and turn on the button to close the chamber. After the door closes, the system can automatically complete the whole process like vacuum, gross leakage, helium filling, Fine leak detection, helium recovery, SF6 filling and so on.
