Four Vacuum Chambers Helium Leak Testing Equipment For Small Four - Way Valve

Brand Name:	HongCe
Model Number:	HC
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROSH(cost additional)

Workpiece:

Small Four - Way Valve

Vacuum Chamber:

4 Chambers

Helium Pressure For Indicating Leakage:

4.15Mpa（ Downward Adjustable ）

Reject Point:

2g / Year

Fixture:

Packaging Details:

Plywood

Highlight:

helium leak test equipment

helium leak testing

Product Description

Four Vacuum Chambers Helium Leak Testing Equipment for Small Four - way Valve

This system is suitable for air-tightness detection of four-way valve to ensure the airtightness of the product.

According to the basic principle of helium leak detection, with helium as the tracer gas, helium is filled into the workpiece in the vacuum chamber, and then the helium leak detector can accurately and quickly judge the leakage of the workpiece.

Equipment Characteristics:
1 . The system has 4 vacuum chambers.
2 . With helium recovery device, which can save cost of the use of helium
3 . Automatically control the test process
4 . High precision , easy operation and fast test cycle

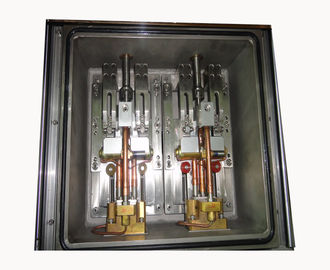

Four Vacuum Chambers Helium Leak Testing Equipment For Small Four - Way Valve 0

Technical Parameters: (will be customized according to client's requirements)

Workpiece	Small four-way valve
Vacuum chamber	4, (2 chambers on each side of Assembly Line)
Detectability	2 workpieces in each chamber
Fixture	2pcs
Helium Pressure for Indicating Leakage	4.15Mpa(Downward adjustable)
Gas pressure for gross leak	4.150MPa (Downward adjustable)
Reject point	2g/Year
Cycle time	10s/pc
Helium Recover Rate	≥98%

Operaiting process

The system has 4 vacuum chambers. The operator puts the workpiece into the fixture in the vacuum chamber, then turn on the button, the door of vacuum chamber is close and workpieces will be clapped automatically. The system can automatically complete the whole process like large leakage and strength detection, air exhaust, helium filling, Helium recovery and so on.
