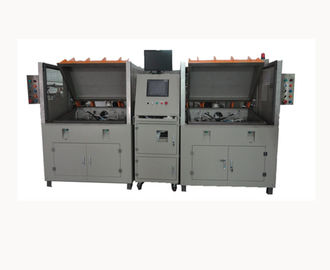

Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar

Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar
Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar

Large Image :  Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: CE, Thir party calibration certificate(cost additional)
Model Number: HJAU

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 120 days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Gas Pressure For Leak Detection: 2 - 42 Bar ( Downward Adjustable ) Test Cycle: 30 S / Pc
Workpiece: Automotive Air - Conditioning Pipeline Chambers: Customized
High Light:

helium leak test equipment

,

helium leak testing

Vaccum Helium Leak Testing Equipment for Automotive Air Conditioning Pipeline



This system is suitable for air-tightness detection of air conditioning pipeline, Fuel lines, brake oil pipeline and engine pipeline of automobile.



Technical parameters



Workpiece Automotive air conditioning pipeline
Vacuum chamber 2 , customized according to product
Tracer gas Helium
Gas pressure for leak detection 2 - 42Bar (Downward adjustable)
Reject point 2g/Year ( R134a )
Cycle time 30s / pc

























Test Principle



According to the basic principle of helium leak detection, with helium as the tracer gas, helium is filled into the workpiece in the vacuum chamber, and then the helium leak detector can accurately and quickly judge the leakage of the workpiece.



Automotive Air Conditioning Pipeline Helium Leak Testing Solution 2 - 42 Bar 0

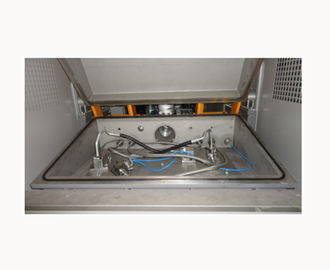

Operation Structure



The system has 2 vacuum chambers. The operator puts the workpiece and seals it with a fixture in the vacuum, chamber. After the door of vacuum chamber is closed, the system can automatically complete the whole process like gross leakage and strength detection, air exhaust, helium filling, fine leak test, helium recovery and so on. High precision, easy operation and fast test cycle make our helium leak test system is widely adopted by manufacturers.
