CE Vaccum Helium Leak Testing Equipment For Automotive Plate Heat Exchanger

Brand Name:	HongCe
Model Number:	HC
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE , Calibration Certificate(cost additional)

Helium Recovery Rate:

≥98%

Test Station:

Twostations For Inner And Outer Test

Tracer Gas:

Nitrogen And Helium

Helium Leakage Pressure:

1.5MPa

Reject Point:

5.0E-7Pa.m3/sec.

Packaging Details:

Plywood

Highlight:

helium leak test equipment

helium leak testing

Product Description

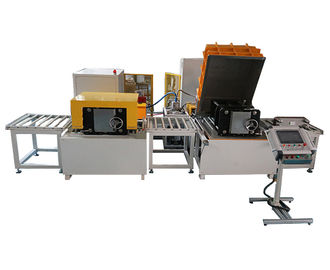

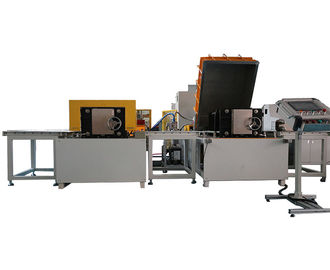

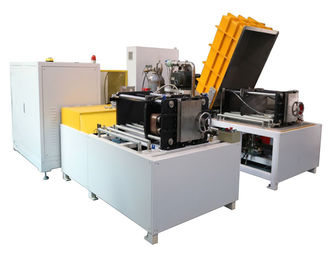

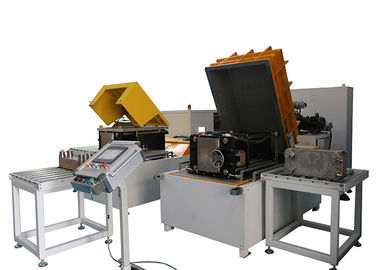

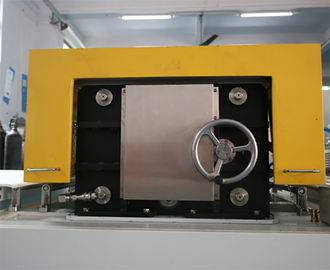

Automotive Plate Heat Exchanger Helium Leak Testing Equipment With Duplex Structure

This helium Leak testing equipment is suitable for the detection of the airtightness of the plate heat exchanger, which is helpful for many industrial applications such as petroleum industry, papermaking, power generation, textile, HVAC,metallurgy, organic chemistry and automobile.

Equipment Principle and Structure:

According to the basic leak detection principle of helium, with helium as the tracer gas, the system can detect the leakage through fills helium into the B cavity of the plate heat exchanger in the inner leakage detection cycle. And in the outer leak detection cycle, helium will be filled in A and B at the same time in order to detect the leakage of the cavity. With the helium leak detector, we can quickly and accurately determine the accuracy of the plate heat exchanger’s leakage.

CE Vaccum Helium Leak Testing Equipment For Automotive Plate Heat Exchanger 0

The system adopts duplex structure, places the workpiece in the inner leak testing station to process inner leak detection firstly, and then push the product to outer leak testing station through the transmission line to process detection. For the three-cavity workpiece, during the inner leak testing cycle, the system fill helium into A cavity for detecting the leakage between A- B and A - C. And during the outer leak detection cycle, the system can detect the leakage of the cavities. This system comes with helium recovery device, can save the cost of helium effective.

Technical Parameters: (will be customized according to client's requirements)

Workpiece	Plate Heat-Exchanger
Leak testing station	Two Stations:one is for workpiece strength and inner leak test ,the other is for outer leak test
Size of testing chamber	850750400mm Can be installed a large workpiece (620500250mm) or 2 small workpieces( 32010077mm)
Gas for Gross Leak Test	Nitrogen
Nitrogen leakage pressure	5.5MPa
Gas for fine leak test	100% Helium
Helium leakage pressure	5.0MPa
Reject point	5.0E-7Pa.m³/sec.
Cycle time	It takes 8 hours to check 480 small workpieces or 240 large workpieces
Helium recovery rate	≥98%
