Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%

Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%

  • Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%
  • Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%
  • Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%
  • Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%
Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98%
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: CE ROSH(cost additional)
Model Number: HJAU027
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 4 months
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Helium Recovery Rate: ≥98% Station: 6
Test Pressure: 4.5MPa Helium Leakage Pressure: 1.5MPa
Test Cycle: 30s/2pcs
High Light:

helium leak detection

,

helium leak test equipment

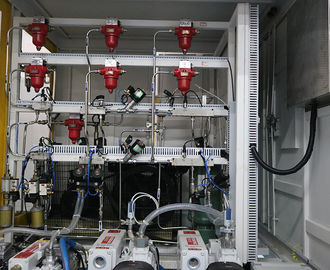

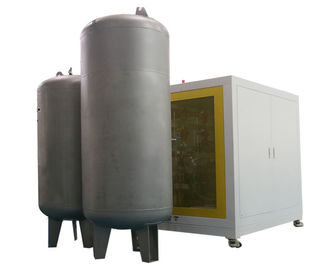

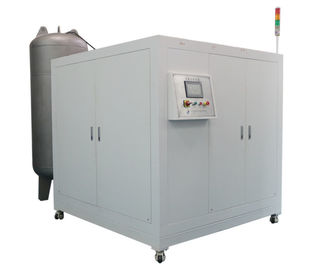

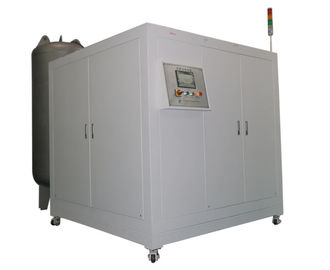

Helium Filling And Recovery Equipment Automatic Gas Recovery System



This helium filling and recovery system can work with manual sniffer detection for products assembly line , before  sniffer detection, this system can fill nitrogen gas into the workpieces and then process gross leakage detection, and fill helium into helium into workpieces and then process vacuum, finally recover helium gas inside of the workpieces after sniffer detection.





Equipment Characteristics:
1. Intelligently control the recovery process
2. Can recover high-pressure gas,  also can recover negative pressure gas
3. Automatically  fill helium
4. Helium and nitrogen can be automatically mixed in proportion as a tracer gas
5. Can provide oil compressor or oil-free compressor two configurations



Technical Parameters: (will be customized according to client's requirements)

Maximum volume of the workpiece 8L
Test Pressure 4.5MPa (can be adjusted to be lower)
Helium Leakage Pressure 1.5MPa (can be adjusted to be lower)
Station

Nitrogen gross leak detection station:2

Vacuum and fill helium station:2

Helium recovery station:2

Test Cycle 30s/2pcs
Maximum helium output pressure 55 bar
Helium output flow Provide 120L / min and 240L / min two standard configuration, can also be customized according to customer requirements
Helium recovery rate ≥98%





Helium Filling / Recovery Equipment Automatic Gas Recovery System Rate ≥98% 0
