| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third Party Calibration, CE (Cost additional) |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 months |
| Payment Terms: | T/T, L/C |
| Test Cycle: | 8sec. /piece | Pressure Sensor Range: | 0Bar < P < 10 Bar |
|---|---|---|---|
| Pressure Sensor Precision: | 0.1% | Vacuum Sensor Range: | 10pa< P <100000pa |
| Vacuum Sensor Precision: | 10pa | ||
| Highlight: | helium leak test equipment,helium leak testing |
||

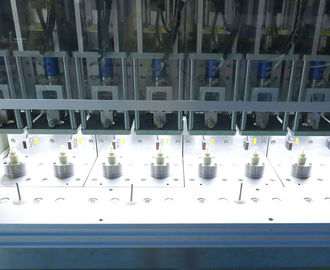

In-line Cartridge Testing Machine Integrated Vacuum Test System For Valve Core
The in-line cartridge test machine integrate compressed air detection, vacuum detection, toruqe test funcations three in one, the test cycle can be 8sec. /piece, the test stations can be customized according to client's workpiece.
Technical Specification:
| Technical Requirement | Technical Rresponse | |
| Product Applicable Scope | Cartridge | Based on client's products |
| Test Functions | Out leakage | YES |
| Cartridge inside leakage | YES | |
| Torque Test | YES | |
|
Main Features
|
Machine Type | In-line |
| Testing Stations | Can be customized | |
| Pressure Sensor Range (Bar) | 0Bar < P < 10 Bar | |
| Pressure Sensor Precision | 0.1% | |
| Vacuum Sensor Range (Bar) | 10pa< P <100000pa | |
| Vacuum sensor precision | 10pa | |
| Turning Unit | Servo motor with torque function | |
| Working Air Pressure (Bar) | 1.5Bar < P < 7 Bar | |
| Fixture SMED Feature | Satisfied | |
| PLC Program | automatically (tailor-made) |
|
| Separate Parameter Control For Different Stations | Satisfied | |
| General Turning Speed Adjustable | Satisfied | |
| Testing Turning Speed Adjustable | Satisfied | |
| Grease Mixing | Satisfied | |
| Leakage Testing In Hot and Cold Chamber | Satisfied | |
| Testing Cross Flow In Close Position | Satisfied | |
| Testing Cross Flow In Open Position | Satisfied | |
| Maximum Torque |
Satisfied Maximum Torque Alarm |
|
| Mark OK Parts After Testing | Satisfied | |
| Torque Adjustable | Satisfied | |
| Machine Failure Logging | Satisfied | |
| Production Records | Satisfied | |
| Grease Cleaning Function | Satisfied | |
| Cycle Time (S) | 8sec. /piece | |
Machine advantages:
(1) The machine type is in-line, includes 8workingstations with cycle time of 8sec pertest piece.
(2) Grease mixing and leak testing for cartridge shallbe automatically completed. OK and NOK parts can be distinguished. OK parts shall be marked automatically andunloaded for packing manually. NOK parts shall be unloaded and placed in thedefective box. Mistakes of the operator are limited.
(3) The machine operation shall be automatically controlledby PLC with high efficiency, high stability and easy operation so as to improvetesting quality and lower human cost.
(4) Astandard leak is applied to the machine as a calibration base which iscertified by Measurement Laboratory of State.
(5) A pressure stability device is built to themachine to get a Stable measurement.
(6) A servo motor with torquecontrol function are used to ensure the Maximum torque andpositioning during test.
(7) There is a blowout channel in the machine toeliminate the dirt from the valve.
(8) There is an automatic marking function in themachine to ensure the good parts are marked.
(9) The leak testing method of evacuation combined withpressurization ensures the false measurement rate to be lower than 2%.
(10) Machine specially designed ventilationpipelines would not be affected by grease mixture and foreign matter.
Testing Procedures:
The machine totally includes 8test stations with the same testing procedure, and can be operated by one operator.
Step 1: manually loading & unloading, one test product each time. (4sec.)
Step 2: mix grease, press, turn, open & close the cartridge. originally check the cartridge to ensure lower rate of false measurement (10sec.)
Firstly, quickly and repeatedly switch the test cartridge to mix grease fully, during the cartridge switching, purge clean & dry gas to cold chamber, hot chamber and exit chamber to ensure every chamber clean.
Secondly, check if grease is mixed completely and each chamber is switched to right position, ensure the same condition of each test piece.
Step 3, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 4, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 5, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 6, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 7, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 8, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 9, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 10, reserved test station (gas fill + pressurization + sampling + ventilation = 7sec.)
Step 11, mark the OK part. (2sec.)
Mark the OK part automatically, alarm NOK part.
We've designed 11 steps, clients can make combination as per clients' pecific products.
