|Place of Origin:||China|
|Certification:||Third part calibration certificate(cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||20 working days|
|Supply Ability:||20 set per month|
|Test Object:||Wires, Cables, Rubber (plastic, Leather) Insulation Layer And Sheath, As Well As Other Polymer Materials.||Standard:||IEC 60335-1|
|Test:||Aging Test||Maximum Operating Pressure:||2.5MP|
|Secure Burst Pressure:||2.7～3.3MP||Temperature-controlled Range:||Room Temperature～200℃|
|Inside Chamber Dimensions:||Diameter 123 × Height 337mm||Outer Chamber Dimensions:||560mm × 420mm × 670mm|
electrical appliance tester,
portable appliance testing equipment

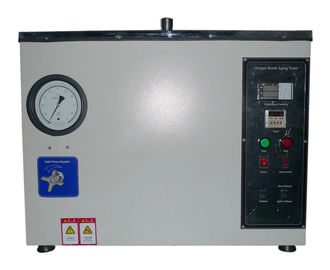

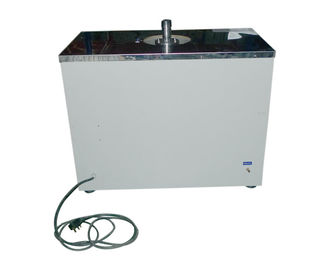

Oxygen Bomb (Air Bomb) Aging Tester HJ0606
This device is used to process the aging test for the electric wire, the insulation layer and sheath of the rubber( plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.
According to the standard Clause 22.32 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3 and etc.
Test sample: Wires, cables, rubber (plastic, leather) insulation layer and sheath, as well as other polymer materials.
Feature: The device adopts inside and outside dual-chamber structure, the samples are suspended in an oxygen tube, filling with oxygen purity ≥ 97%, make the pressure up to 2.1 ± 0.07 MPa and maintain the temperature at 70 ° ± 1 ° C, then process aging test for 96 hours in this state.
|Power supply||AC 220V 50Hz|
|Maximum Operating Pressure||2.5MP|
|Secure Burst Pressure||2.7～3.3MP|
|Temperature-controlled range||room temperature～200℃|
|Outer Chamber Dimensions||560mm × 420mm × 670mm|
|Inside Chamber Dimensions||Diameter 123 × Height 337mm|
|Inside Chamber Volume||4000cm3|
|Temperature Alarm||0～200℃ Adjustable|
|Temperature Control||Intelligent control|
|Temperature Display||Thermometer display|
|Material||Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate|
