Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester

Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester

  • Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester
  • Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester
  • Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester
Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0601
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Household And Similar Electrical Appliances Standard: IEC 60335-1
Test: Temperature Measurement Size: 600X600X1000mm(can Be Customized)
Thermocouple: OMEGA Thermocouple K Type Copper Sheet: Diameter 15mm, Thickness Of 1mm
Measuring Points: 20, 32, 48, 64(can Be Customized) Plywood: Thickness Of 20mm
Highlight:

Versatile Temperature Rise Test Corner

,

Multi-Type Electrical Appliance Tester

,

Temperature Rise Test Corner

Temperature Measurement Corner

Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester





Description:

This device is Used for the temperature rise test of all kinds of motor-operated appliances and electrical products to meet the requirements of the environmental conditions.

Its built with 20mm thickness plywood, measuring temperature with diameter 5mm thickness 1mm copper sheets and K type OMEGA thermocouples. To be used with a temperature recorder.

Confirm to IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.



Technical parameters:

Test object Household and similar electrical appliances
Reference standard IEC 60335-1
Test temperature measurement
Size

600X600X1000mm, 800X800X1000mm, 1000x1000x1200mm(can be

customized)

Thermocouple original OMEGA thermocouple K type with diameter less than 0.3mm
The thermocouple arrangement

All leads on a connection line(optionally equipped with

thermocouple plug and socket)
Copper sheet

diameter of 15mm and the thickness of 1mm

Measuring points 20, 32, 48, 64(can be customized)
The arrangement of temperature measuring points 100*100mm or 76*76mm square(can be customized)
Plywood The thickness is 20mm and the front side is painted with Berlin black and the reverse side is with gray film back
The movable part there are 4 removable wheels installed on the bottom of the device
Structure 1 bottom plate, 2 side plates, 1 top plate
Optional Temperature recorder



Test sample: Household appliances, such as microwave ovens, refrigerators.



Feature: Can make different distribution specifications, the number of temperature measurement points and outline dimension according to the actual test samples.

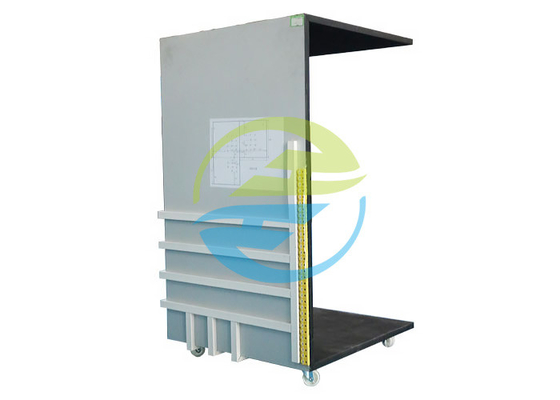

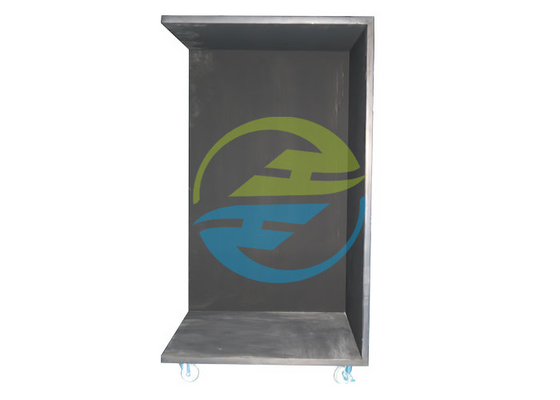

Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester 0

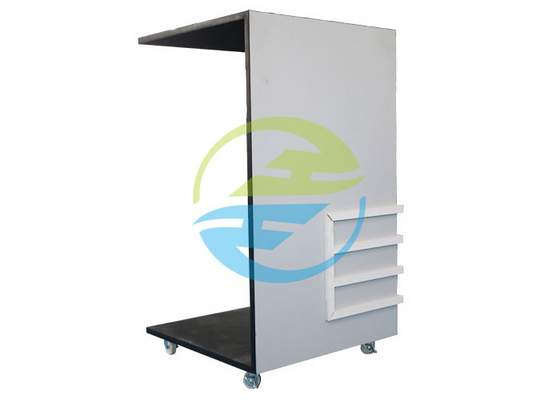

Versatile Temperature Rise Test Corner for Multi-Type Electrical Appliance Tester 1
