products details

Home Products

Portable Helium Concentration Detector 70%-100% He Real Time Monitor Device LED Display

Brand Name:	HongCe
Model Number:	HJND01
MOQ:	1 set
Price:	Negotiatable
Supply Ability:	In stock

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate (Cost additional)

Detection Pressure:

0.1MPa—1.0MPa

Detection Range:

70%-100%

Detection Accuracy:

±2%

Display:

LED

Packaging Details:

Carton Box

Highlight:

helium leak detection

helium leak test equipment

Product Description

Helium Concentration Detector

Application:

Helium concentration detector is used to monitor the concentration of helium in the pipeline in real time.

Feature:

Operating principle: Thermal conductivity measurement
Rapidly and automatically determinate the concentration range
High precision, high stability and high reliability
LED display, intuitive and convenient
Simple appearance, with handle, easy to carry
Lightweight and portable

Technical Parameters:

Detection Pressure	0.1MPa—1.0MPa
Detection Range	70%-100%
Gas Inlet	Φ6mm gas pipe
Detection Accuracy	±2%
Input Voltage	AC220V
Output interface Performance	1-10V
Display Method	LED
Dimensions	Length 240mm,Deep Test 360mm, Height 150mm
Weight	3.5KG

HongCe has a lots of self-developed supporting devices for our helium leak detection system, which are also widely adopted by clients. Except helium concentration detector, HongCe also can supply high precious standard leak hole, which are passed third party calibration.

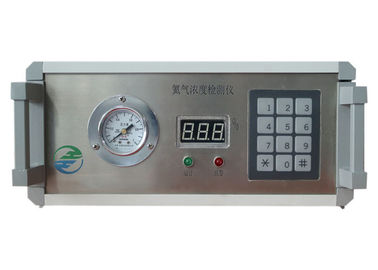

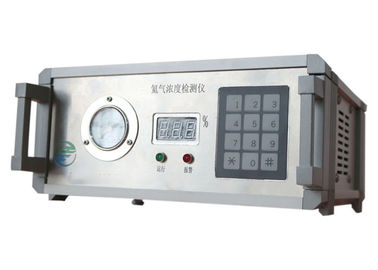

Portable Helium Concentration Detector 70%-100% He Real Time Monitor Device LED Display 0

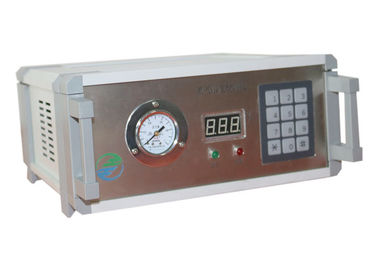

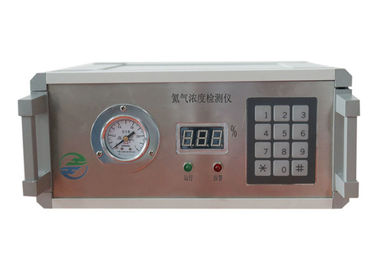

Portable Helium Concentration Detector 70%-100% He Real Time Monitor Device LED Display 1

HongCe has the ability to rapidly provide the best tailored solution according to the characteristics of client's sample and inspection requirements. Our technology developed China's first high-precision helium leak detection system, with accuracy of 5×10E-11 Pa.m³/ sec,used in military products mass detection; participated in many well-known factories’ entire line detection project, especially in charged for the automatic helium detection section. In addition to own strong technical capacity, we also have a good cooperation with internationally renowned company AGILENT, LEYBOLD, INFICON and etc.
