|Place of Origin:||China|
|Certification:||Third party calibration certificate(cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||120 days|
|Payment Terms:||L/C, T/T|
|Leak Detection Rate:||1.0E-6mbar.l/s||Test Pressure:||5bar|
|Cycle Time:||7 Min/pc||Chamber:||Two|
helium leak detection,
helium leak test equipment

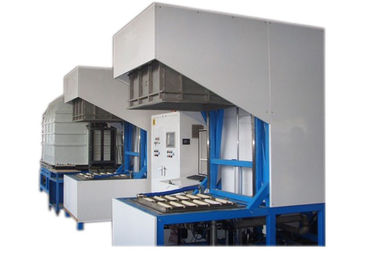

Cast Aluminum High Voltage Switchgear Helium Hood Leak Test System 7min/pc 5bar Pressure

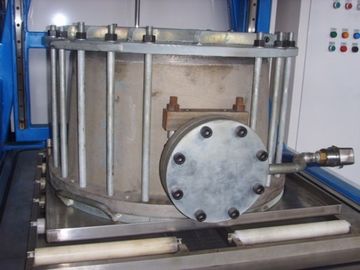

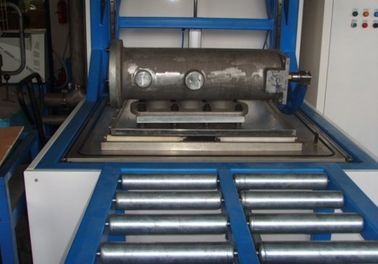

This helium hood lea test system for SF6 switch gears is with rectangular bell vacuum chambers, two chambers can work linkage, the cycle time is 7 min/pc, can filling helium pressure 5bar, detect large workpiece by helium hood.
Charge high pressure gas into the product for gross leak test and proof test；
Evacute the vacuum chamber.
Vent gas from the product.
Evacuate the product and charge helium into the product.
Test the helium signal from the vacuum chamber by the leak detector for fine leak judge.
Recover helium from the product.
Vent vacuum chamber.
|Cycle time||7min/pcs. (for reference, demanded by customer)|
|Leak rate||1.0E-6mbar.l/s. (for reference, demanded by customer)|
|Test pressre||5bar. (for reference, demanded by customer)|
|Chambers||2. (for reference, demanded by customer)|
Internationally renowned brand hardwares:
|Helium leak detector||Inficon|
Except above internationally renowned brand hardwares, hongce also adopts to our own components of independent intellectual property rights, such as gas recovery unit, helium concentration meter, standard leak holes (with third party calinration certificates) and etc.
Helium concentration meter
Standard leak holes
Why need helium leak detection?
1. The sealing performance requirements increased due to industry development, general leak detection method is hard to achieve the high level leak detection.
2. The pursuit of production capacity increased due to enterprise development , helium leak detection can process the high level leak detection to achieve fast production cycle .
3.Helium leak detection can be fully automatic controlled, reliability is high and the product quality is traceability.
Want to know more about helium leak detection information and our helium leak test system, please do not hesitate to email to us or call to us, we are willing to share our experience with you!
