Refrigerant Filling Equipment Supporting Multi-Refrigerant Precision and MES Traceability

Brand Name:	HongCe
Model Number:	HC-HLT-F4
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A
Supply Ability:	1 set per 3 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Control System:

PLC With 10-inch HMI

Repeatability:

Consistent Charge-to-charge Variation

Charging Accuracy:

Within 100 G: +/-0.5 G; Above 100 G: +/-0.5%

Industrial Network:

RJ45 / RS-485, MES Connectable

Refrigerant Compatibility:

R1233zd, HP-1, R134a And Blends

Charging Range:

10-500 G, Expandable

Data Storage:

Production Data Retained For 3 Years

Packaging Details:

Plywood

Highlight:

Multi Refrigerant Adaptive Charging

MES Data Traceability

High Precision Filling

Product Description

Refrigerant Filling Equipment Supporting Multi-Refrigerant Precision and MES Traceability

Advanced Multi-Refrigerant Filling Solution

Production lines that fill more than one refrigerant need equipment that can change over without losing accuracy, and quality teams increasingly need a record of what was charged into every unit. The HongCe HC-RF-M4 combines multi-refrigerant support, precision weighing and full production-data traceability in one station.

One Station for Several Refrigerants

Recipes hold the settings for each refrigerant and product, so switching from one to another is a matter of selecting the recipe rather than re-tuning the machine. Charging remains accurate across the changeover, whether the target is a small critical charge or a larger fill.

Precision That Holds Between Cycles

Weighing-based control keeps charge-to-charge variation small, which is what production consistency actually depends on. Accuracy is specified to within 0.5 g under 100 g and 0.5 percent above, giving a defined basis for process control.

Traceability for Quality and Customers

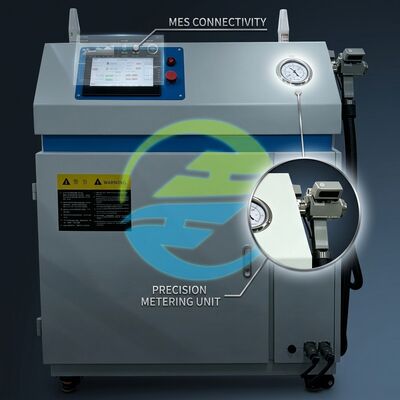

Every charge is recorded with its recipe, quantity and result, and production data is retained for up to three years. The station connects to MES over RJ45 or RS-485, so the charging step becomes part of the same production record as the rest of the line.

Technical Specifications

Item	Specification
Charging range	10-500 g, expandable
Charging accuracy	Within 100 g: +/-0.5 g; above 100 g: +/-0.5%
Refrigerant compatibility	R1233zd, HP-1, R134a and blends
Data storage	Production data retained for 3 years
Industrial network	RJ45 / RS-485, MES connectable
Control system	PLC with 10-inch touch

Typical Applications

Suited to manufacturers running mixed product families or transitioning to newer, lower-impact refrigerants, and to plants building connected production lines where each unit needs a traceable charge record.

Engineering and Service Support

HongCe supports recipe setup, MES integration, commissioning and operator training. We can help map the charging data to your quality system and provide documentation for internal and customer audits.

Frequently Asked Questions

Can the machine switch refrigerants during a shift?

Yes, by selecting the appropriate recipe; the changeover does not require re-tuning.

What data is recorded?

Recipe, target and actual charge, timestamp and result, retained for up to three years and available to MES.

Request a Configuration

Tell us which refrigerants and products you run and how your quality system records data, and we will propose a configuration that fits both.
