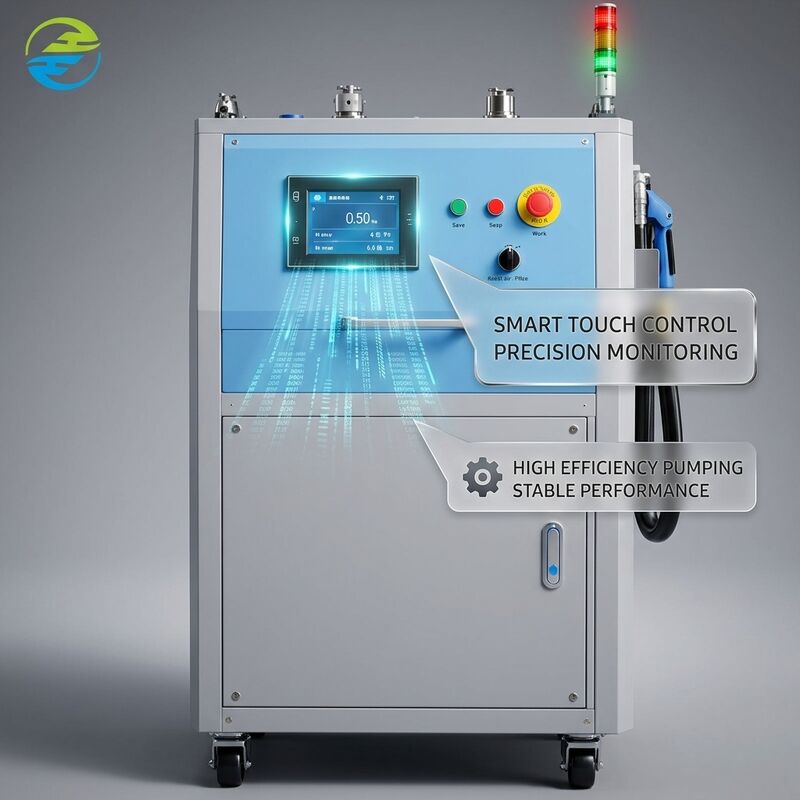

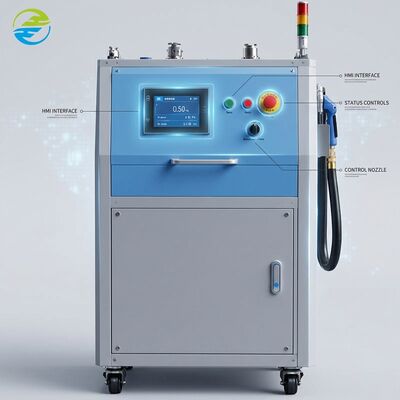

Refrigerant Filling Equipment Performing Pipeline Evacuation for Residual Recovery

Name: Refrigerant Filling Equipment Performing Pipeline Evacuation for Residual Recovery
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HC-RF-V2
Price: 5000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HC-RF-V2
MOQ:	1 set
Price:	Negotiation
Payment Terms:	L/C,T/T,D/A
Supply Ability:	20 set per 3 months

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Control System:

PLC With MES Interface

Gas Source Pressure:

0.4 MPa Minimum

Equipment Vacuum:

Less Than 2 Pa

Charging Accuracy:

Within 100 G: +/-0.5 G

Residual Recovery Rate:

Up To 95%

Evacuation Capability:

4 L/s

Charging Range:

10-500 G

Packaging Details:

Plywood

Highlight:

Pipeline Evacuation Cycle

Residual Refrigerant Recovery

Pre-Fill Vacuum Process

Product Description

Refrigerant Filling Equipment Performing Pipeline Evacuation for Residual Recovery

Refrigerant Filling Equipment with Pipeline Evacuation and Residual Recovery

Before a refrigeration circuit is charged, it must be emptied of air and moisture, and the pipeline connecting the machine to the product must be properly prepared. Manual processes for this are slow and typically result in residual refrigerant being released to atmosphere. The HongCe HC-RF-V2 combines pipeline evacuation and residual refrigerant recovery in a single automated sequence, preparing the circuit for charging without manual intervention and preventing unnecessary refrigerant loss.

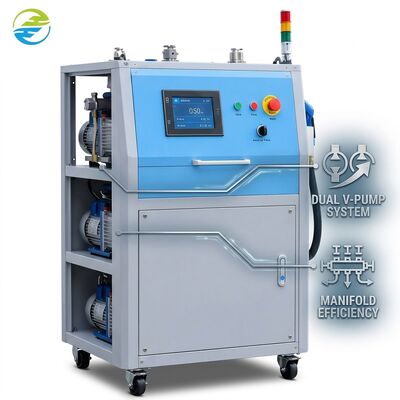

Pipeline Evacuation as Part of the Cycle

Evacuation runs as a defined step within the charging sequence with monitored vacuum levels. The process automatically stops only when the required vacuum is achieved, eliminating operator judgment and ensuring consistent results.

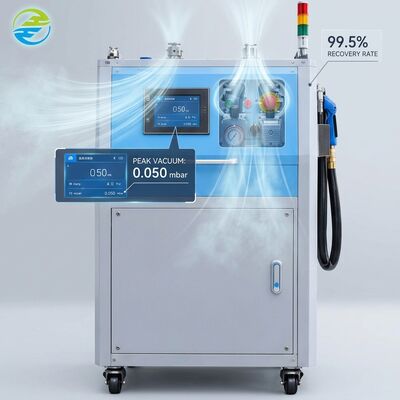

Residual Refrigerant Recovery Before Charging

Instead of venting residual refrigerant from the line, the machine recovers it before releasing the charge. This recovery process maintains cleaner working areas, reduces refrigerant consumption, and helps facilities meet environmental reporting targets that customers increasingly demand.

Technical Specifications

Item	Specification
Evacuation capability	4 L/s
Equipment vacuum	Less than 2 Pa
Residual recovery rate	Up to 95%
Charging range	10-500 g
Charging accuracy	Within 100 g: +/-0.5 g
Control system	PLC with MES interface

Typical Applications

Suitable for refrigeration and air-conditioning assembly lines, heat-pump production, and any process where circuits must be evacuated and prepared before precise refrigerant charging.

Engineering and Service Support

HongCe provides comprehensive support including installation, process tuning, and operator training. We can assist with recording evacuation and recovery data for internal and customer reporting. Preventive maintenance schedules and recommended spare parts are supplied with each machine.

Frequently Asked Questions

Can the recovery step be disabled for some products?

Yes. The sequence can be configured per recipe according to the specific product and refrigerant requirements.

Does recovery slow the cycle down?

Recovery is integrated into the charging sequence, making the total cycle time controlled and predictable.

Request a Configuration

Share your pipeline layout and target vacuum level, and we will propose an evacuation and recovery configuration tailored to your production line.
