Detailed Product Description
Test Pressre: 2-42bar Cycle Time: 1min./pcs
PLC: Omron Leak Rate: 1.0E-3mbar.l/s ~ 1.0E-5mbar.l/s
HMI: Omron
High Light:

helium leak detection

,

helium leak test equipment

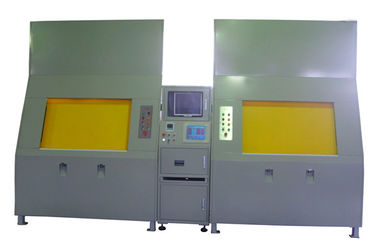

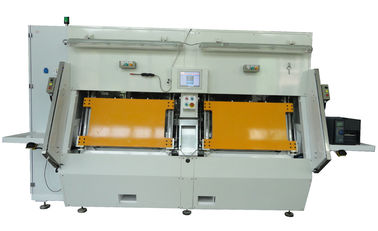

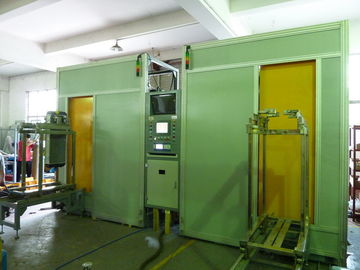

Automatically Vacuum Chamber Helium Leak Test System for Automobile Parts



It is requred to be leak free for the radiators, heat-exchangers, oil-exchangers, fuel tanks and others else automobile parts. As there might have welding defects, it is necessary to do leak test before vehicle assembly. The normal solution is auto vacuum chamber helium leak test system, the integral leak would be tested quickly and precisely.





Test Concept

  • Charge high pressure gas into the product for gross leak test and proof test;

  • Evacute the vacuum chamber.

  • Vent gas from the product.

  • Evacuate the product and charge helium into the product.

  • Test the helium signal from the vacuum chamber by the leak detector for fine leak judge.

  • Recover helium from the product.

  • Vent vacuum chamber.

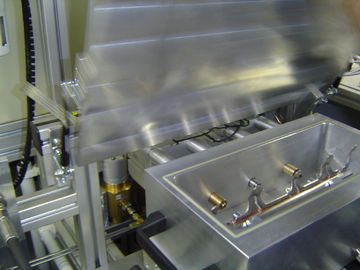

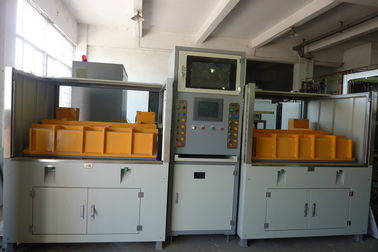

Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 0



Technical specification:



Components to test Automobile Parts
Reject point (unit: mbar.l/sec.) gas venting parts, pipelines of engine 1.00E-01
Aluminium wheel, fuel cell 1.00E-04

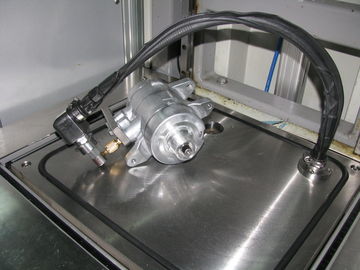

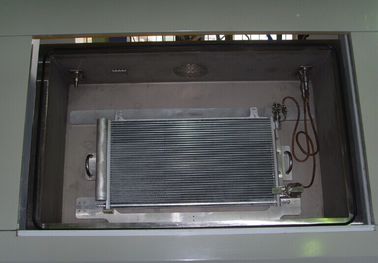

Condenser, evaporator, refrigerant pipelines, compressor 1.00E-05
storage battery 1.00E-06
Fuel nozzle, automobile radiator, automobile heater core 1.00E-03
Engine cooler 1.00E-04
Fuel tank, fuel pipelines 1.00E-05
Gas for Gross Leak Test Nitrogen or dry air
Pressure for Gross Leak Test 2-42bar, demanded by working pressure of test piece.
Pressure for Helium Leak Test 2-42bar, demanded by working pressure of test piece.
Quantity of Test Station 1, 2 or 3, demanded by cycle time
Products to test in each Chamber 1 or 2
Cycle Time 30sec./pcs, demanded by production rate of test piece
Helium recovery rate >95%

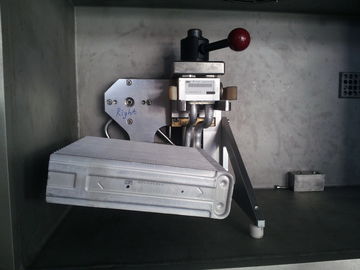

Test Fixture Included
Calibration Leak 2 pieces, one is for system calibration, the other is for machine daily check.
Loading and unloading of Products Manual or Automatic
Test Cycle Automatic





Main parts of system:

Vacuum pump Leybold
Vacuum sensor Inficon
Helium leak detector Inficon
Presure sensor GE
Solenoid valve Burkert
PLC Omron
HMI Omron



We adopt to famous brand vacuum pump,  vacuum sensor, leak detector, pressure sensor, solenoid valve and etc. Except for we cooperate with LEYBOLD, INFICON, we also have our R&D patented fittings to well equip our helium test equipment.

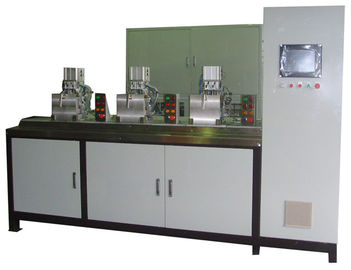

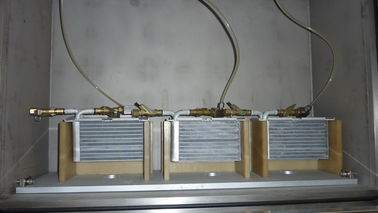

On-line Helium Leak Test Machine for Evaporators:

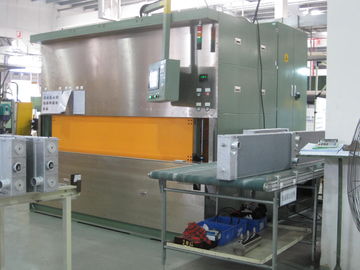

Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 1



Patent Certificate:

Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 2Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 3



International Cooperation:



Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 4

Automatic Vacuum Helium Leak Test System for Automobile Parts Cycle Time 1min/pc Leak Rate 1.0E-5mbar.l/s 5





HongCe technical team can rapid provide the best tailored solution according to the characteristics of customer’s sample and inspection requirements. Our technology developed China's first high-precision helium leak detection system, with accuracy of 3 × 10-8 sccm, participated in many famous household appliance factories’ entire line detection project, especially in charged for the automatic helium detection section. In addition to own strong technical capacity, we also have a good cooperation with internationally renowned company LEYBOLD, INFICON.
