Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC

Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC

Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC

Brand Name: HongCe
Model Number: L-Z-2×1200
MOQ: 1 set
Price: Negotiatable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Third party calibration certificate
Cycle Time:
10min/pcs
Leak Rate:
1.0E-6mbar.l/s
Test Pressre:
5bar
Vacuum Pump:
Leybold
PLC:
Omron
Packaging Details:
Plywood
Highlight:

helium leak test equipment

,

helium leak testing

Product Description

Automatically Vacuum Helium Leak Detection Equipment for Cast-Aluminium Shell of Switch Gears



The cast-aluminium shell shall be filled with SF6 gas, no leak is permitted. As there might have casting defects, it is necessary to do leak test before SF6 fill. The normal solution is auto vacuum chamber helium leak test system.





Test Concept

  • Charge high pressure gas into the product for gross leak test and proof test；

  • Evacute the vacuum chamber.

  • Vent gas from the product.

  • Evacuate the product and charge helium into the product.

  • Test the helium signal from the vacuum chamber by the leak detector for fine leak judge.

  • Recover helium from the product.

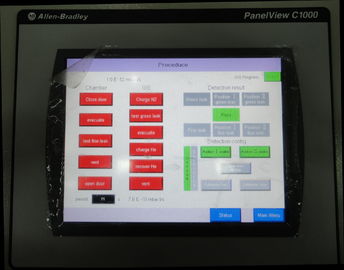

  • Vent vacuum chamber.Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 0



Technical specification:

  • Cycle time:10min/pcs. (for reference, demanded by customer)

  • Leak rate:1.0E-6mbar.l/s. (for reference, demanded by customer)

  • Test pressre:5bar. (for reference, demanded by customer)



Main parts of system:

Vacuum pump Leybold
Vacuum sensor Inficon
Helium leak detector Inficon
Presure sensor GE
Solenoid valve Burkert
PLC Omron
HMI Omron
Helium recovery unit HJ



Other Else Helium Leak Test Machine for Cast-Aluminium Shell of Switch Gears

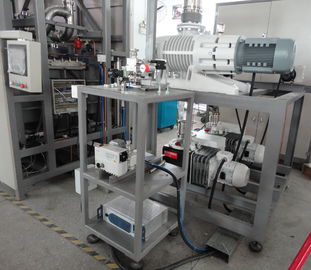

Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 1

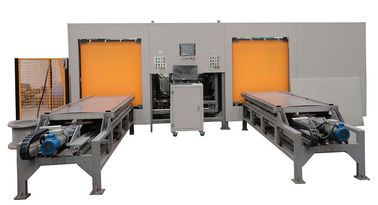

Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 2



Patent Certificate:



Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 3Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 4





International Clients:



Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 5





Automatic Vacuum Helium Leak Testing Equipment for Cast-Aluminium Shell Switch Gears with Inficon Detector Omron PLC 6
