Electric Iron Drop Tester High-precision Temperature And Humidity Control 40mm Drop Height Stainless Steel Body Complies With IEC 60335-2-3 Standard Household Appliance Safety Testing Tool

Name: Electric Iron Drop Tester High-precision Temperature And Humidity Control 40mm Drop Height Stainless Steel Body Complies With IEC 60335-2-3 Standard Household Appliance Safety Testing Tool
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ0610
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HJ0610
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Product Name:

Iron Drop Testing Equipment

Usage:

Iron Mechanical Strength Test

Standard:

IEC 60335-2-3

Test Time:

1 000 Times

Test Rate:

20 Drops Per Min

Drive Mode:

Electric Moto Driven

Grop Height:

40mm

Supported Steel Plate:

Thickness 15mm And At Least 15 Kg

Packaging Details:

Plywood

Highlight:

High Precision Electric Iron Drop Tester

40mm Electric Iron Drop Tester

Product Description

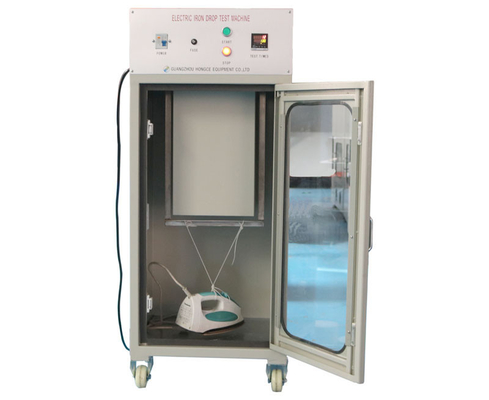

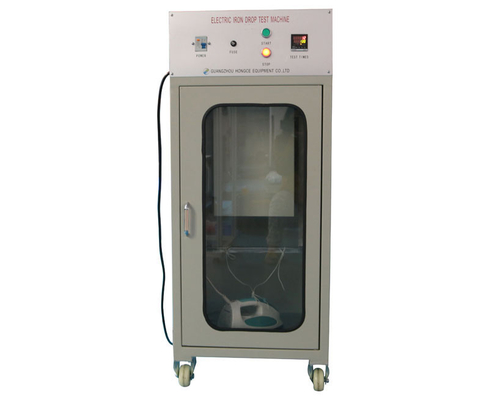

Electric Iron Drop Tester High-precision temperature and humidity control 40mm drop height Stainless steel body Complies with IEC 60335-2-3 standard Household appliance safety testing tool

Product Introduction:

The HJ0610 electric iron drop tester was born based on this concept. It not only meets the strict international standards, but also incorporates a number of humanized designs to make the operation easier and more efficient. Whether it is product testing in the R&D stage or quality control in the production process, HJ0610 can provide you with accurate and reliable data support, protect your product quality, and safeguard your brand.

Product Features:

The advanced sensor technology ensures precise control of the drop height and number of times. The body is made of high-quality stainless steel, which is not only beautiful but also has excellent corrosion resistance and impact resistance. It is equipped with an intuitive operation interface that is easy to understand. The optimized motor drive system not only improves the test efficiency but also reduces energy consumption. The equipment runs smoothly with low noise, which is in line with the concept of environmental protection. It has multiple protection functions such as overload, overheating, and short circuit to ensure the safety of equipment and operators.

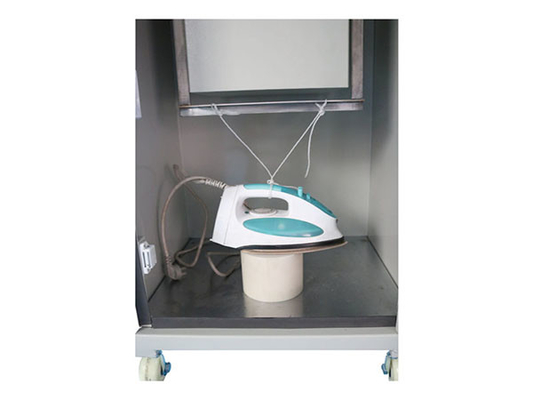

Test sample of Home Appliance Testing Equipment:

Home appliance like Electric iron, control device of blankets and etc.

Parameters:

Parameters / Model	HJ0610
Input Power	AC240V 50HZ
Drive Mode	Electric moto driven, the drop action is achieved through the cam mechanism.
Test Cycles	1~999999, adjustable
Working Speed	≤20 r/minute
Dropping Height	40mm
Support Steel Plate	Thickness >15mm, weight >15kg
Dimension & Weight	5305601050mm,100kg
