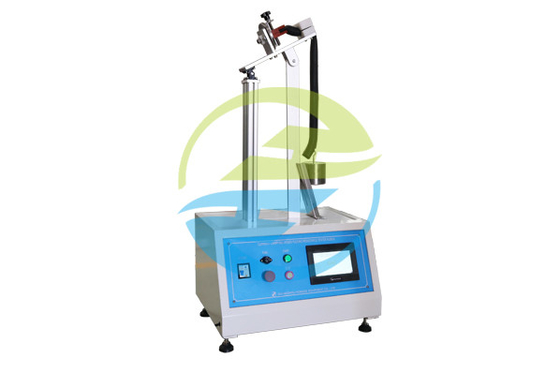

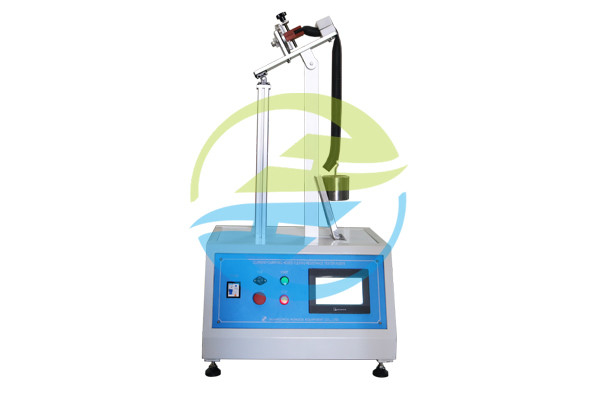

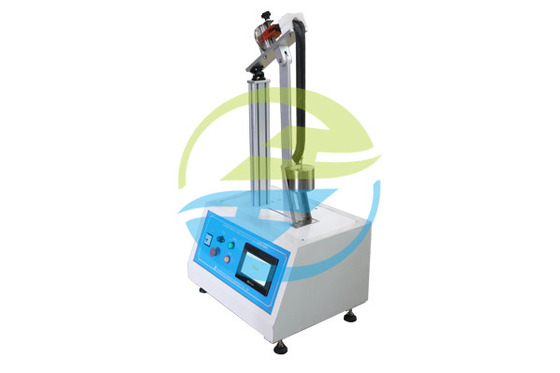

Home Appliance Current-Carrying Hoses Flexing Resistance Tester

Home Appliance Current-Carrying Hoses Flexing Resistance Tester

Home Appliance Current-Carrying Hoses Flexing Resistance Tester
Home Appliance Current-Carrying Hoses Flexing Resistance Tester
Home Appliance Current-Carrying Hoses Flexing Resistance Tester
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HJ0616
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Usage: Flexing Resistance Test Standard: IEC60335-2-2
Warranty: 1 Year Application: Current-Carrying Hoses
Flexing Angle: 40°±1°, Can Be Preset Flexing Speed: 10r/min (that Is 60°/s)
Mass Weight: 5 Kg Swing Arm Length: 300mm±50mm

Home Appliance Current-Carrying Hoses Flexing Resistance Tester



The Home Appliance Current-Carrying Hoses Flexing Resistance Tester is designed in accordance with IEC60335-2-2 Household and similar electrical appliances – Safety – Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances clause 21.103 and Figure 102. Its main purpose is to determine the flexing resistance of current-carrying hoses used in household appliances.

Sample Range

This tester is applicable to test samples such as vacuum cleaner tubes, suction cleaner tubes, and washing machine water pipes.

Structure and Function

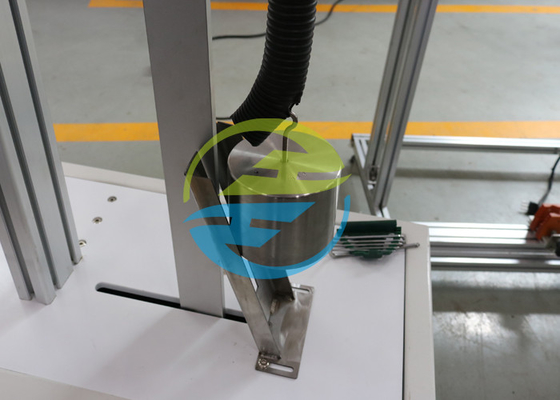

The tester is structured in a bending machine form. It utilizes PLC control and touch screen operation, enabling the presetting of bending angles and rates. The test automatically stops when the set number of cycles is reached. During the test, the pivot arm of the hose's end fixed device is placed on the pivot arm shaft with a specific distance from the hose's entry point into the rigid part. A 5kg weight is hung on the other end of the hose, which can slide along the weight slide. The hose is bent from the level to 40°±1° for 2500 cycles and then turned 90° to repeat the test for another 2500 cycles. Afterward, an electrical strength test of the sample is conducted.

Technical Parameters

No. Project Parameter
1 Power supply 220V, 50Hz
2 Control and operation PLC intelligent electrical control, touch screen operation
3 Work station 1
4 Bending speed 10r/min (60°/s)
5 Bending angle 40°±1°
6 Load weight 5kg
7 Size 1000x500x1100mm
8 Weight 100kg

This tester provides an effective means to evaluate the flexing resistance of current-carrying hoses in home appliances, ensuring the quality and safety of these components.



Standard figure:

Home Appliance Current-Carrying Hoses Flexing Resistance Tester 0

Picture for reference:



Home Appliance Current-Carrying Hoses Flexing Resistance Tester 1





Home Appliance Current-Carrying Hoses Flexing Resistance Tester 2
