Base Flat Diameter 120mm±10mm Aluminum Vessel for Drop Test For Home Appliance Testing Equipment

IEC60335-2-9 Base Flat Diameter 120mm±10mm Home Appliance Testing Equipment Aluminum Vessel for Drop Test

Vessel For Drop Test procedure:

The vessel uniformly filled with at least 1,3 kg of sand or shot so that the total mass is 1,80 kg ± 0,01 kg. For induction wok elements, the vessel is the wok specified in 3.1.9.101. It is uniformly filled with sand or shot so that the total mass is 1,80 kg ± 0,01 kg.

Products Introduction:

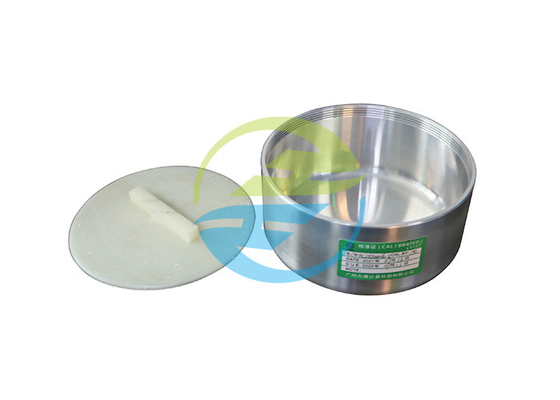

This product is manufactured according to the standard of IEC60335-2-9 clause 21.101, it is used for the impact strength test of the electromagnetic stove. It is made of pure aluminum, the outer ring has a V-lock coil slots, use rope and cloth cover can prevent the sand spread out when dropping.

This product is practical and simple, it is the special accessories for dropping test.

Standard of Home Appliance Testing Equipment:

IEC 60335-2-6 Household and similar electrical appliances – Safety – Part 2-6: Particular requirements for stationary cooking ranges, hobs, ovens and similar appliances clause 21.102;

IEC60335-2-9 Household and similar electrical appliances – Safety – Part 2-9: Particular requirements for grills, toasters and similar portable cooking appliances clause 21.101

Application of Home Appliance Testing Equipment:

This vessel is used to verify the resistance of hob surfaces made of glass-ceramic or similar materials to the expected stresses in normal use.

Features of Aluminum Vessel for Drop Test:

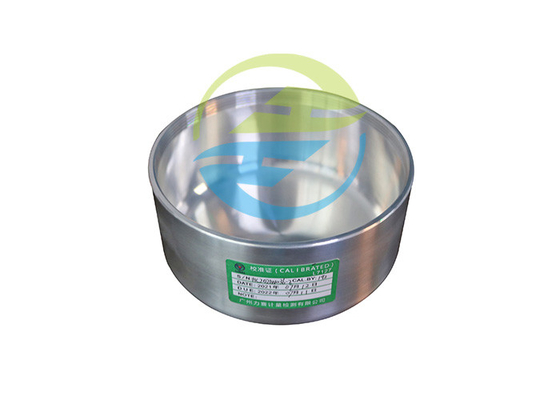

The diameter of the vessel is 120 mm ± 10 mm. Made of aluminium. The edges are rounded at a radius of 10 mm. It has a flat base.

Parameters:
