Steel Pressure IEC 60884-1 Figure 8 Compression Test Equipment By Manual Operation

Brand Name:	HongCe
Model Number:	CP-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Material:

Steel

Weight:

300N

Operating Method:

Manual

Standard:

IEC 60884-1 Figure 8

Number Of Test Station:

Temperature:

23±2 ℃

Packaging Details:

Plywood

Highlight:

iec testing equipment

iec tester

Product Description

Steel Pressure IEC 60884-1 Figure 8 Compression Test Equipment By Manual Operation

Product details:

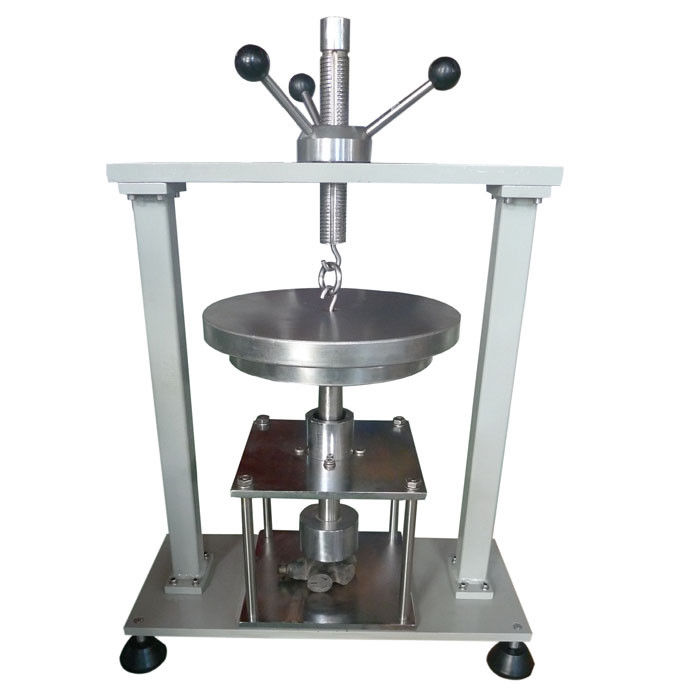

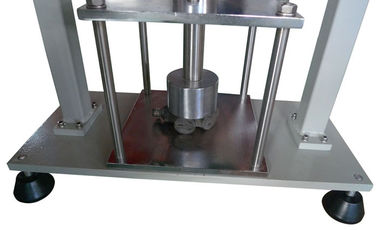

The arrangement for compression test apparatus of 24.5 is desgined and manufactured according to IEC 60884-1 figure 8, it is manufactured to test the compression resistance of test specimens. It consists of steel pressure plate , steel base and 300 N weight, its operation way is by manual.

Test principle:

The specimens are subjected to a compression test as shown in figure 8, the temperature of the pressure plate, of the base and of the specimens being (23±2) ℃ and the force applied being 300 N.

The specimens are first placed in position a), as shown in figure 8, and the force is applied for 1 min. They are then placed in position b), as shown in figure 8, and again subjected to the force for 1 min.

The specimens are removed from the test apparatus and after 15 min they shall show no damage within the meaning of this standard.

Technical parameters:

Number of Test Station	1
Operating method	By manual
Weight	300N(pile up)
Conforms to standard	IEC 60884-1 Figure 8

Steel Pressure IEC 60884-1 Figure 8 Compression Test Equipment By Manual Operation 0
