IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests

IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests

IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests
IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests
IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HCVC01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 50 days
Payment Terms: T/T
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Product Name: Vacuum Cleaners Performance Test System Usage: Home Appliance Testing Equipment
Standard: IEC 60312-1, IEC 62885 Warranty: 1 Year
Test Bench: 3.5m * 2m (L*W) Testing Software: Software In English
Test Item: Dust Removal From Carpets Test Item: Dust Removal From Hard Flat Floors
High Light:

Home Appliance Testing Equipment

,

Vacuum Cleaners Home Appliance Testing Equipment

Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests IEC 60312



Description of Home Appliance Testing Equipment:

It is a special system for dry vacuum cleaner performance testing. The whole system is composed of dust removal and dust spread test platform, air performance test platform, dust beating platform, carpet hanging rack, frequency conversion power supply and central control cabinet.



Standard of Home Appliance Testing Equipment:

IEC 60312-1 Vacuum cleaners for household use – Part 1: Dry vacuum cleaners – Methods for measuring the performance;

IEC 62885 Surface cleaning appliances – Part 2: Dry vacuum cleaners for household or similar use – Methods for measuring the performance.



Test items of Home Appliance Testing Equipment:

1. Dust removal from hard flat floors

2. Dust removal from hard floors with crevices

3. Dust removal from carpets

4. Air data

5. Energy consumption



Specification of Home Appliance Testing Equipment

No. Part Name Main technical parameter
1 Test bench 3.5m L* 2m W, aluminum profile, MISUMI aluminum profile
2 Floor test plate Used for Dust removal from hard flat floors test, untreated laminated pine wood or equivalent panel, at least 1 5 mm thick.
3 Test plate with crevice Used for Dust removal from hard floors with crevices test. a wood panel provided with a removable insert of aluminium having a (3 ± 0,05) mm wide and (10 ± 0,05) mm deep smooth crevice
4 Carpet-beating machine Suitable for removing all residual dust shall not damage the carpet. One suitable design consists of a horizontal cylinder provided with thongs to beat the backing of the carpet when it is fed back and forth under the rotating cylinder.
5 Hold-downs and guides The two hold-downs shall be at least 1 ,4 m × 0,05 m × 0,05 m in dimension and weigh 10 kg each.
6 Dust spreader The device consists of a tray extending across the width of the test area and mounted on a trolley, which can be moved along the length of the test area without impinging upon it. When the trolley is moved back and forth over the test area, a vibratory action causes the test dust, which has been placed evenly along the tray, to emerge from a line of suitably sized holes along the base of the tray, equally spaced and sufficient in number to cover the test area uniformly with test dust.
7 Dust embedding roller The roller shall have a diameter of 50 mm and a length of at least 380 mm such that it is at least 20 mm longer than the width of the dust covered area. The roller is preferably made of steel and polished. It can be provided with a handle for rolling by hand or be driven by a motorized unit. The mass of the roller is 10 kg/m.
8 Alternative B equipment for air data tests

The overall accuracy of the air data test shall be ±2 %. The measuring box shall be made of sheet steel and shall allow the connection of all types of vacuum cleaners.

The measuring box (see Figure 24) shall be 500 mm × 500 mm × 500 mm in internal dimensions with provisions for fastening replaceable orifice plates to establish the air flow. The outlet for connection of the vacuum-meter shall be located in the vicinity of a corner within 1 5 mm of adjacent walls.

The air flow is controlled by means of a set of 1 0 orifice plates with varying orifice sizes and is determined from the observed values of the vacuum. The orifice plates shall be made of sheet steel, (2 ± 0,1 ) mm in thickness, and have sharp-edged circular openings with nominal diameters d0 including 0-9 size.

9 Computer and display 8G memory; 500G disc; 19.5 inch; XP system
10 Testing software Software in English, made in China
11 Temperature and humidity barometer meter

Accuracy: temperature ±0.5℃; humidity 3%RH; barometer ±0.2kPa; RS485 communication

The temperature and humidity atmospheric gauge is connected to computer software.

12 AC and DC digital power meter (including time measurement) Power consumption: P: Grade 0.5, sampling speed: 0.1s; power consumption time: 50-9999ms, maximum permissible error: 5ms
13 Precision electronic balance

Accuracy: 0.01g; RS232 communication

Electronic scale is connected to computer software.

14 Standard test dust Mineral dust – Type 1/7.2.2.1, 10kg
15 Standard test dust Mineral dust – Type 2 /7.2.2.2, 10kg
16 Test carpets SLG Wilton carpet, 0.6 * 2 m, 2 pcs


Support and Services:

At Home Appliance Testing Equipment, we know how important it is to have reliable and accurate test equipment. That is why we are committed to delivering the best technical support and service. Our team of experts can provide assistance with anything from troubleshooting to installation and maintenance.

We offer both on-site and remote technical support to meet all your needs. Remote support allows us to provide assistance quickly and efficiently, while on-site support allows us to provide the hands-on service you need. We also offer 24/7 phone support to ensure that you get the help you need, when you need it.

In addition, we have a comprehensive library of online resources to help you get the most out of your test equipment. Our library includes user manuals, technical documents, white papers, and videos to help you maximize your testing efficiency.

At Home Appliance Testing Equipment, we are committed to providing the best technical support and service to keep your equipment running smoothly. If you have any questions or need assistance, please do not hesitate to contact us.



After-sales service:

We specialize in the field of energy efficiency test system, performance test system and overall laboratory construction for household appliances, Guangzhou HongCe Equipment Co., Ltd is committed to providing excellent after-sales service to our valued customers. We understand that customer satisfaction is crucial for long-term partnerships, and we strive to meet and exceed their expectations.

Our after-sales service team is composed of highly trained professionals who are dedicated to resolving any issues or concerns that our customers may have. We offer prompt and efficient technical support, ensuring that any problems with our products are addressed in a timely manner.

In addition, we provide comprehensive product warranties to give our customers peace of mind. Our warranties cover manufacturing defects and ensure that our customers receive reliable and high-quality equipment. If any issues arise during the warranty period, we will promptly repair or replace the defective parts or products.

Furthermore, we value feedback from our customers as it helps us improve our products and services. We encourage open communication and actively listen to our customers' suggestions and concerns. Their feedback is essential in our continuous efforts to enhance customer satisfaction and product performance.

At Guangzhou HongCe Equipment Co., Ltd, we are committed to building long-lasting relationships with our customers. Our dedicated after-sales service team is always ready to assist and support our customers throughout their entire ownership experience. We aim to provide a seamless and satisfactory after-sales service, ensuring that our customers can rely on us for all their needs.

We appreciate the trust and confidence our customers have placed in us, and we will continue to prioritize their satisfaction through our exceptional after-sales service.

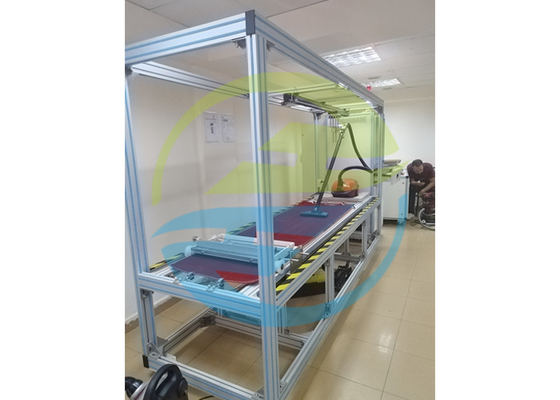

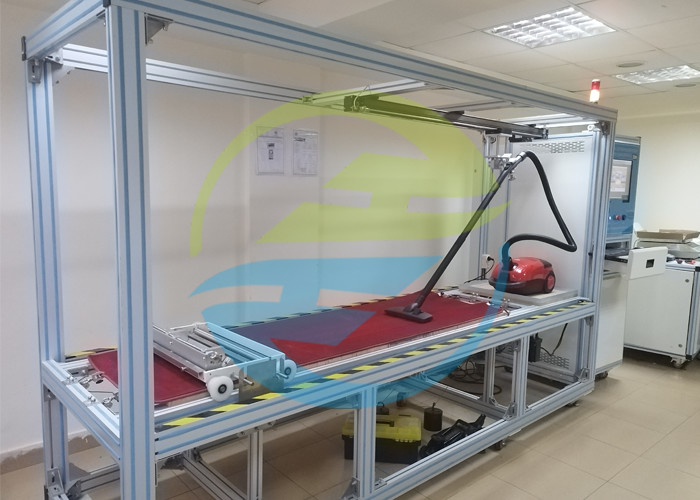

Our equipment at customer sites:

IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests 0



IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests 1

IEC 60312 Home Appliance Testing Equipment Vacuum Cleaners Cleaning Tests 2
