|Standard:||IEC 60745-2-1, IEC 60745-2-6||Warranty:||1 Year|
|Control:||PLC Touch Screen||Test Cycle:||0-999999|
|Air Source:||5~8 Bar||Load Voltage:||0-250V Adjustable|
|No-load Rotation Angle:||0°,90°,180°||Steel Ball:||Φ38mm|
Electric Hammer Durability Test Apparatus,
Diameter 38mm Hammer Durability Test Apparatus,
IEC 60745-2-1 Electric Hammer Durability Test Apparatus
IEC 60745-2-1 Electric Hammer Durability Test Apparatus Steel Ball Diameter 38mm
Product Introduction: Impact durability test system for hammer is suitable for the durability test of the electric tools under 2.5 KW. This tester meets the requirement of IEC60745-1 standard. It is the ideal test equipment for professional testing organizations and electric tools manufacturers.
The electric hammer non-load and load durability test bench is designed according to IEC 60745-2-6 Figure 103, the test electric hammer is installed on it and under normal operation intermittently, then check whether there is any possible electrical and mechanical hazard which does not meet the standard requirements.
This equipment adopts to Mitsubishi PLC control, 7” touch screen intelligent operation, force applied by gas, angle positioned by motor control automatically, the test system is comprehensive, the operation is simple and convenient.
Standard: IEC 60745-2-1: Particular requirements for drills and impact drills, clause 17; IEC 60745-2-6: Particular requirements for hammers, clause 17 and figure 103
Application: This apparatus is applicable to durability test for hand held motor operated electric tools power no more than 2.5KW.
Test sample: Electric hammers, Electric drills and impact drills IEC Test Equipment
Feature: The test apparatus in according with IEC 607465-2-6 figure 103 requirements, load hammer or drill, intermittent operate it, check whether electrical or mechanical hazard appears during the normal use of the electric hammer or drill.
Equipment components are as follows:
1, electric control cabinet containing MITSUBISHI PLC, 7 Inch Touch screen, control panel, load (voltage 0-250V adjustable, voltage and current display); IEC Test Equipment
2, mechanical device as shown in Figure 103, containing 360 kilograms of steel base, including the impact head, steel plate and fixture.
1 No load test: All hammers, including hammers with drill only mode, are mounted vertically in a test apparatus as shown in Figure 103 and are operated at 1.1 times rated voltage for 12h, then operated at 0.9 times rated voltage for 12h. Each cycle comprising a period of operation of 30s and a rest period of 90s during which the tool remains switched off. During test, on each test voltage, hammer placed in three different directions (horizontal, vertical, vertical), each position of the tool running time of about 4 hours.
2 Load test: All hammers, including hammers with drill only mode, are mounted vertically in a test apparatus as shown in Figure 103 and are operated at rated voltage or at the mean value of the rated voltage range, for four periods of 6h each, the interval between these periods being at least 30 min. IEC Test Equipment
During these tests, hammers are operated intermittently, each cycle comprising a period of operation of 30s and a rest period of 90s during which the tool remains switched off.
During the tests, an axial force to ensure steady operation of the impact mechanism is applied to the hammer through a resilient medium.
If the temperature rise of any part of the tool exceeds the temperature rise determined during the test of 12.1, forced cooling or rest periods are applied, the rest period being excluded from the specified operating time.
During these tests, overload protection devices shall not operate.
The tool may be switched on and off by means of a switch other than that incorporated in the tool. IEC Test Equipment
During these tests, replacement of the carbon brushes is allowed, and the tool is oiled and greased as in normal use.
If the impact mechanism fails mechanically during the test without causing an accessible part to become live it may be replaced by a new one.
|2||Air source||5~8 bar|
|3||Electrical control||MITSUBISHI PLC, 7 Inch Touch screen|
|4||Load voltage||0-250V adjustable, current display|
|5||No-load rotation angle||0°,90°,180°, can manual control clockwise or counter clockwise|
|6||No-load rotation rate||0-360°/s, preset|
|7||Power on time||0-999.9s, preset|
|8||Power off time||0-999.9s, preset|
|9||Test time||0-9999h, preset IEC Test Equipment|
|10||Total test time||0-9999h, preset|
|11||Interval time||0-9999min, preset|
|12||Load pressure||100,125,150,175,200,250,300,350,400N preset|
|13||Impact head||0.7,1.4,2.3,3.4kg (include the connect handle), use according to table 101|
|15||Steel plate||100,140,180,220mm, use according to table 101|
|16||Rubber plate||A set of 4, Matching with steel plate and steel base|
|17||Steel base||base weight 90kg, equipped with 9 pcs 30kg weights|
Control cabinet 60*40*75cm, about 100kg;
Test rack 40*40*200cm, about 390kg

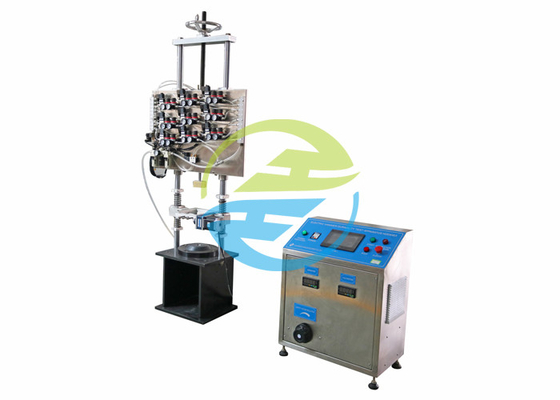

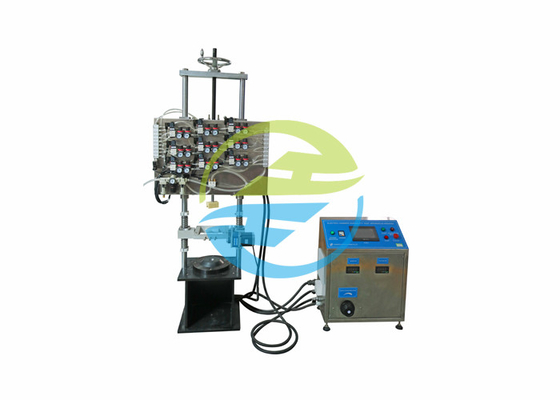

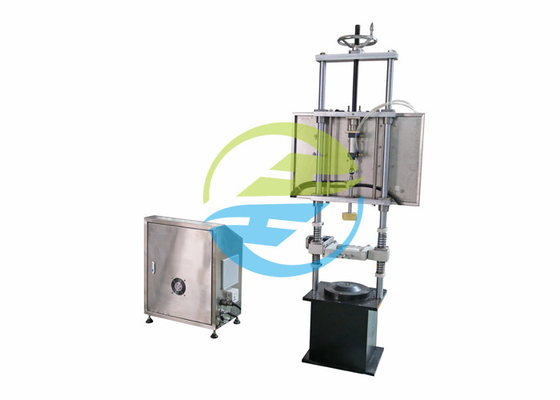

Picture for reference:
