| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HH0812A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Name: | Natural Convection Oven | Standard: | IEC60811-401, IEC60811-409 And Etc. |
|---|---|---|---|
| Complete Air Changes: | 8-20 Times/hour | Power: | 5.5KW |
| Temperature Uniformity: | ＜2℃ | Max Temperature: | RT+20℃~300℃ |
| Turntable Speed: | 5~10r.p.m | Warranty: | 1 Year |
| High Light: | Natural Convection Oven Heating Chamber,IEC 60811 Heating Chamber |
||

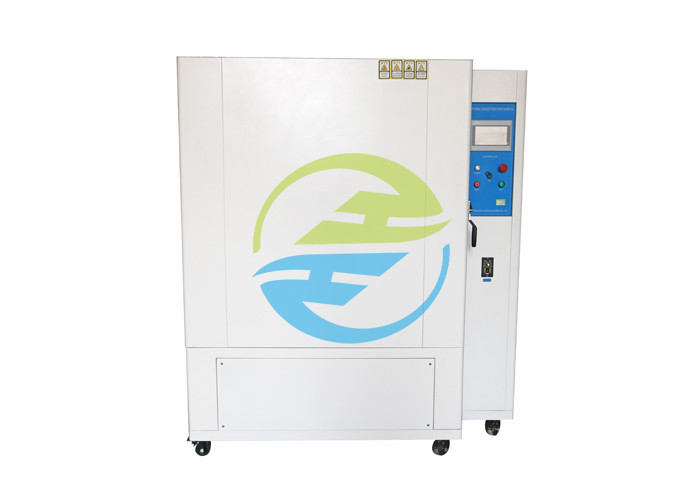

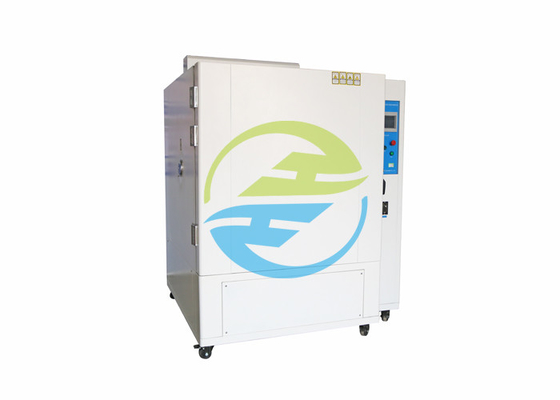

IEC 60811 Natural Convection Oven Heating Chamber, 8-20 Air Changes Per Hour
Introduction:
This device Conforms to IEC60811-401, IEC60811-409, IEC 60065:2014 clause12.1.6, 12.7.3.2, IEC 60884-1 2013 clause 16.1. It is use to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on. During the test, the test sample is fixed on the test piece holder of the device and heated in a rotating manner. The device is equipped with a motor-driven turntable, and the function of hot air circulation can ensure uniform temperature distribution. IEC Test Equipment
Parameters:
| 1 | Inner size | 1000*1000*1000mm |
| 2 | Electric heating power | 5.5KW, with two-stage heating selection mode |
| 3 | Intelligent PID control, with self-tuning function, instrument accuracy: 0.1 ℃ | |
| 4 | Temperature uniformity | ＜2℃ |
| 5 | Max temperature | RT+20℃~300℃ IEC Test Equipment |
| 6 | Sample rotation speed | 5~10r.p.m |
| 7 | Rotary motor power | 1/4HP |
| 8 | Stainless steel inner wall and outer chamber are cold-rolled and sprayed | |
| 9 | Double-layer stainless steel compartment, single-layer stainless steel round turntable IEC Test Equipment | |
| 10 | Natural ventilation rate | 8~20 times/hour |
| 11 | With ultra-high temperature protection function, it can effectively protect the safety of equipment | |
Picture:
