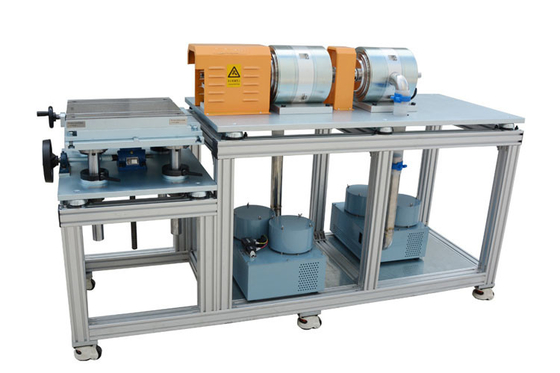

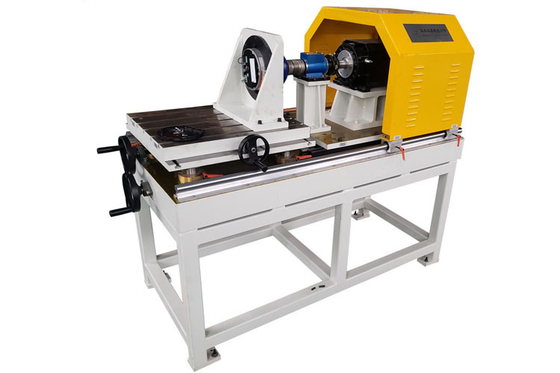

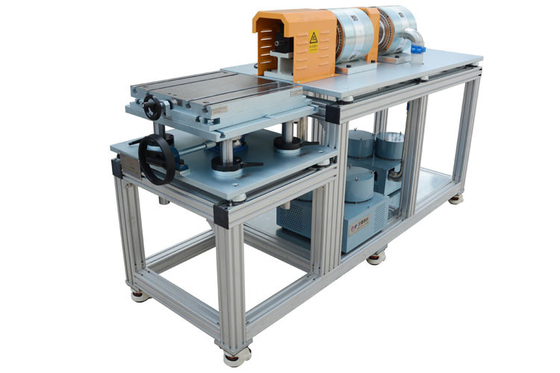

High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station

High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station

  • High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station
  • High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station
  • High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station
  • High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station
High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HC-MO01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 50 days
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Motor Performance Testing Equipment Application: Motor Testing Equipment, Dynamometer
AC Voltage: 3.0-500V AC Current: 0.020/40.00A
Torque: 0.1-100N.m DC Voltage: 3.0-300V
DC Current: 0.020/50.00A Speed: Max 8000r/min

High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station



Introduction of motor test bench:

The high-speed and high-power motor test bench (test system) can be used in various high-speed motor applications such as new energy vehicle drive motors, high-speed air compressor motors, and high-speed magnetic levitation motors. The installation platform can be designed according to the motor to be tested, and the end flange installation structure or the base installation structure can be selected.



The motor test bench is mainly used to test the motor's input voltage, input current (AC/DC), input power, power factor (AC); output torque (rated torque, blocking torque, starting torque, maximum torque, etc.), output speed, output mechanical power; efficiency; temperature rise, vibration, noise and so on. It can carry out type tests and factory tests to evaluate the comprehensive performance of the motor and provide an accurate parameter basis for the R&D, production, maintenance, and field application of the motor. Motor comprehensive performance test bench can test all kinds of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, and so on.



Main parts of motor test system:

The motor test bench mainly includes Dynamometer, control system, electrical parameter measurement system, mechanical structure, and monitoring software.



Major test items of motor test bench:

Power and torque characteristic test of motor with controller

Temperature rise test of motor with controller

Motor with controller locked-rotor test

Motor controller control strategy development verification test

Motor with controller maximum speed test

Braking regenerative energy feedback test of motor with controller

Motor external characteristic test

Development and matching optimization test of motor and controller powertrain

Performance test and calibration test of motor and controller powertrain

Efficiency map test

Accelerated response test

Torque response test

Endurance test of steady-state cyclic loading



Parameter of motor test rig:

AC voltage measurement range 3.0-500V, precision: 0.5 grade
AC current measurement range 0.020/40.00A, precision: 0.5 grade
DC voltage measurement range 3.0-300V, precision: 0.5 grade
DC current measurement range 0.020/50.00A, precision: 0.5 grade
Power I*U, precision: 0.5 grade
Torque measurement range 0.1-100N.m, precision: 0.5 grade
Speed measurement range Max 8000r/min



High-Speed And High-Power Motor Test Bench For Motor Performance Testing Equipment Single Station 0
