| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | CT-2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 5 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Usage: | Electrical Appliances Testing Equipment | Standard: | IEC 60335-1 |
|---|---|---|---|
| Testing Voltage: | AC40-50V | Working Voltage: | AC 220V, 50Hz |
| Name: | Anti-shock Probe Experiment Device | Application: | Testing Home Appliances |
| High Light: | IEC 60335-1 Home Appliance Testing Equipment,Live Indicate Home Appliance Testing Equipment |
||

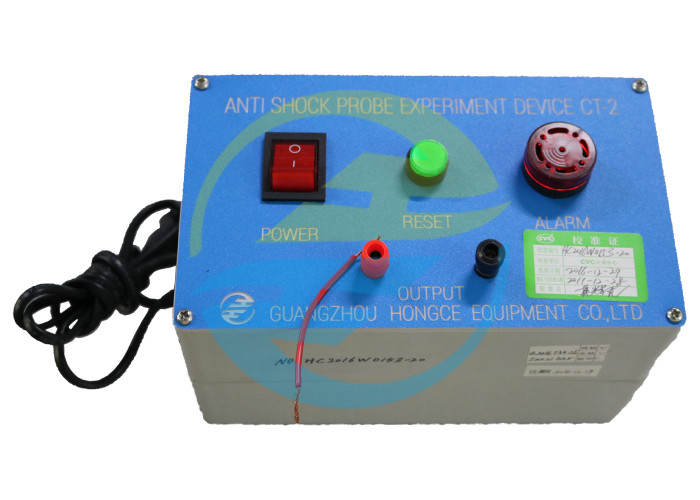

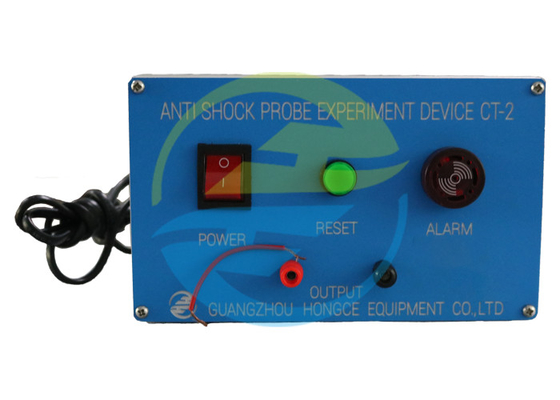

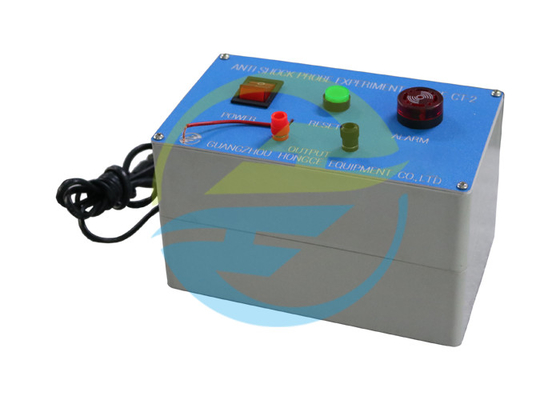

IEC 60335-1 Home Appliances Testing Equipment Test Probe Live Indicate Device
Standard of Electrical Appliance Testing Equipment:
IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 8.1.4;
Application of IEC 60335-1 Testing Equipment:
This device complies with the standard IEC60335-1 Clause 8.1.4 and is intended for use with a testing probe to ensure convenience and accuracy.
Connect the low potential (red) electrode to the energized part of the electrical appliance and the high potential electrode to the input terminal of the probe. Once the circuit is connected, press the start button. Proceed to touch the parts that may be electrified using the probe. If the equipment's alarm sounds, it indicates that the tested part is electrically live. In such cases, press the reset button and disconnect the circuit.
Parameter of IEC 60335-1 Testing Equipment:
| Working voltage | AC 220V 50Hz |
| Testing voltage | AC40-50V |
| Red terminal | Connect to the accessible part of the electrical appliance |
| Black terminal | Connect to the test probe |
