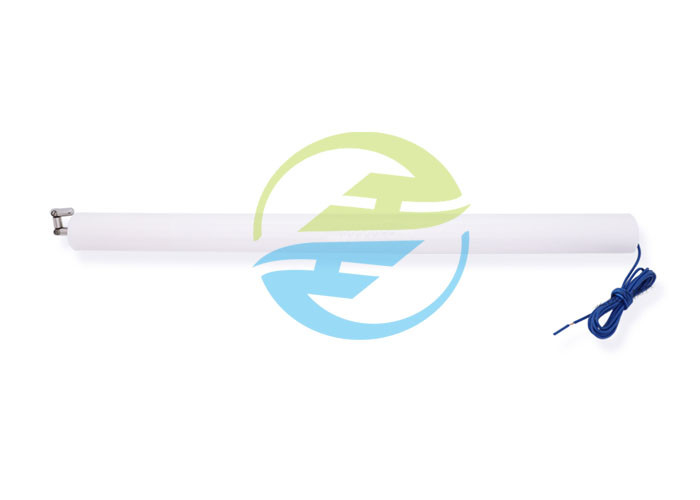

IEC 60335-1 Home Appliance Testing Equipment Test Probe 18 Of IEC 61032

Brand Name:	HongCe
Model Number:	HT-I12
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Product Name:

Test Probe 18 Of IEC 61032

Usage:

Home Appliance Testing Equipment

Standard:

IEC 60335-1, IEC 61032

Finger Length:

57.9±0.15mm

Finger Diameter:

8.6±0.1mm

Finger Material:

Stainless Steels

Handle Material:

Nylon

Name:

Test Probe 18

Packaging Details:

Plywood

Highlight:

IEC 60335-1 Home Appliance Testing Equipment

Stainless Steel Home Appliance Testing Equipment

Product Description

IEC 60335-1 Home Appliances Testing Equipment Test Probe 18 of IEC 61032

Standard of Electrical Appliance Testing Equipment:

IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 8.1.1;

IEC 61032 Protection of persons and equipment by enclosures –Probes for verification figure 12

Application of Test Probe 18 of IEC 61032:

Appliances shall be constructed and enclosed so that there is adequate protection against accidental contact with live parts.

Test probe 18 of IEC 61032 are applied with a force not exceeding 1 N, the appliance being in every possible position, except that appliances normally used on the floor and having a mass exceeding 40 kg are not tilted.

During the tests with test probe 18, the appliance shall be fully assembled as in normal use without any parts removed.

This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.

Feature of IEC 60335-1 Electrical Appliances Testing Equipment:

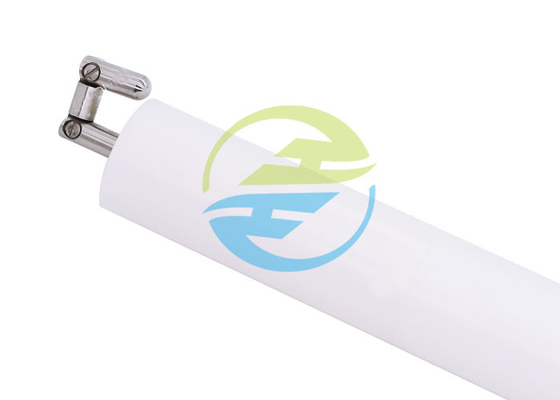

The finger of the test probe 18 is in metal material stainless steels, and the handle is in insulating material nylon.

The extension of the handle represents the arm of the child.

Parameter of Test probe 18:

Name/Model	Test probe 18 /HT-I12
Hemispherical	R4.3±0.05
Finger diameter	Ф8.6±0.1
Finger length	57.9±0.15
Joint distance	19.3
Axes of joints diameter	Ф38.4±0.3
Axes of joints length	101.6±0.3
Handle diameter	Ф38.1±0.3
Handle length	451.6±0.8

IEC 60335-1 Home Appliance Testing Equipment Test Probe 18 Of IEC 61032 0
