IEC 60335-1 Home Appliance Testing Equipment Test Probe B Of IEC 61032

Brand Name:	HongCe
Model Number:	HT-I02
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Product Name:

Test Probe B Of IEC 61032

Usage:

Home Appliance Testing Equipment

Standard:

IEC 60335-1, IEC 61032

Finger Length:

80±0.2mm

Guard Diameter:

Ф75±0.2mm

Baffle Thickness:

20mm

Baffle Plate Diameter:

50mm

Knurled Finger Diameter:

12mm

Packaging Details:

Plywood

Highlight:

IEC 60335-1 Home Appliance Testing Equipment

IEC 61032 Home Appliance Testing Equipment

Product Description

IEC 60335-1 Home Appliances Testing Equipment Test Probe B of IEC 61032

Standard of Electrical Appliance Testing Equipment:

IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 8.1.1, 8.2, 22.1, 29.1, 29.2 and ect.;

IEC 61032 Protection of persons and equipment by enclosures –Probes for verification

Application of Test Probe B of IEC 61032:

Appliances shall be constructed and enclosed so that there is adequate protection against accidental contact with live parts.

Test probe B of IEC 61032 are applied with a force not exceeding 1 N, the appliance being in every possible position, except that appliances normally used on the floor and having a mass exceeding 40 kg are not tilted.

This probe is intended to verify the basic protection against access to hazardous parts.

Feature of Electrical Appliances Testing Equipment:

The handle and guard of the test probe B are made by insulating material nylon. And the finger made by stainless steels.

The test probe B can be used with a push-pull force gauge.

Parameter of Test Probe B:

Model	HT-I02
Name	IEC 61032 test probe B
Joint 1	30±0.2
Joint 2	60±0.2
Finger length	80±0.2
Fingertip to guard	180±0.2
Cylindrical	R2±0.05
Spherical	R4±0.05
Fingertip cutting bevel angle	37^o 0 -10′
Fingertip taper	14^o 0 -10′
Test finger diameter	Ф12 0 -0.05
A-A Section diameter	Ф50
A-A Section width	20±0.2
Guard diameter	Ф75±0.2
Guard thickness	5±0.5
Applied standard	IEC 61032-1

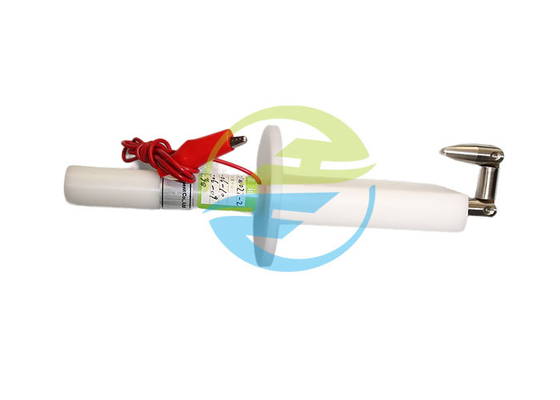

IEC 60335-1 Home Appliance Testing Equipment Test Probe B Of IEC 61032 0

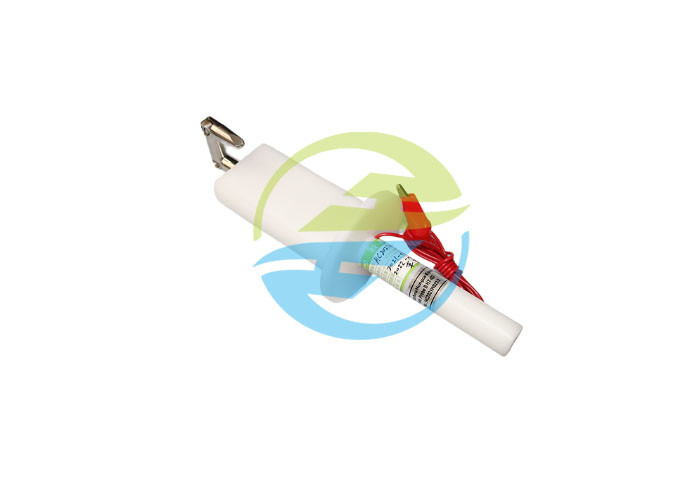

IEC 60335-1 Home Appliance Testing Equipment Test Probe B Of IEC 61032 1
