| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HK1501 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Sets per month |
| Product Name: | Marking Durable Testing Equipment | Usage: | Home Appliance Testing Equipment |
|---|---|---|---|
| Standard: | IEC 60335-1 | Test Stroke: | 10-60mm |
| Test Station: | 2 Stations | Load Weight: | 50, 100, 300, 500g |
| Application: | Home Appliance | Voltage Range: | 220V-240V |
| High Light: | IEC 60335-1 Home Appliance Marking Machine,Adjustable Speed Home Appliance Marking Machine |
||

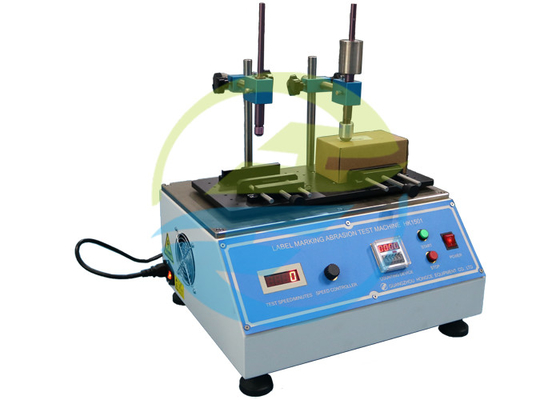

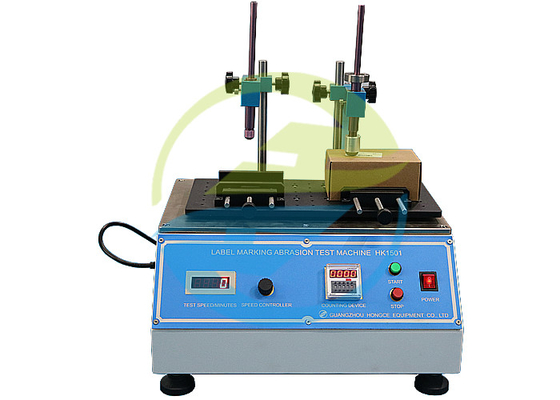

IEC 60335-1 Home Appliance Marking Durable Testing Equipment Adjustable Test Speed
Standard of Electrical Appliance Testing Equipment:
IEC 60335-1: 2020 Household and similar electrical appliances – Safety – Part 1: General requirements clause 7.14
Application of Marking Durable Testing Equipment:
The markings of the electrical appliances shall be durable. On containers that are likely to be cleaned frequently, the markings shall not be by means of paint or enamel, other than vitreous enamel. By rubbing the marking for 15 s with a piece of cloth soaked with water and again for 15 s with a piece of cloth soaked with petroleum spirit. After all the tests, the marking shall be clearly legible. It shall not be easily possible to remove marking plates nor shall they show curling.
Parameter of Home Appliance Testing Equipment:
| Specification | Two axes (can be used as both rubber and alcohol friction, pencil hardness test can also be added) |
| Test stroke | 10-60mm, adjustable(Manually adjustable) |
| Weight | Two pieces of each 50, 100, 300, 500g Can be customized according to user requirements |
| Voltage | 220V |
| Machine size | 500*300*550mm |
| Accessories | Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pc, cotton cloth, eraser 2 pc |
